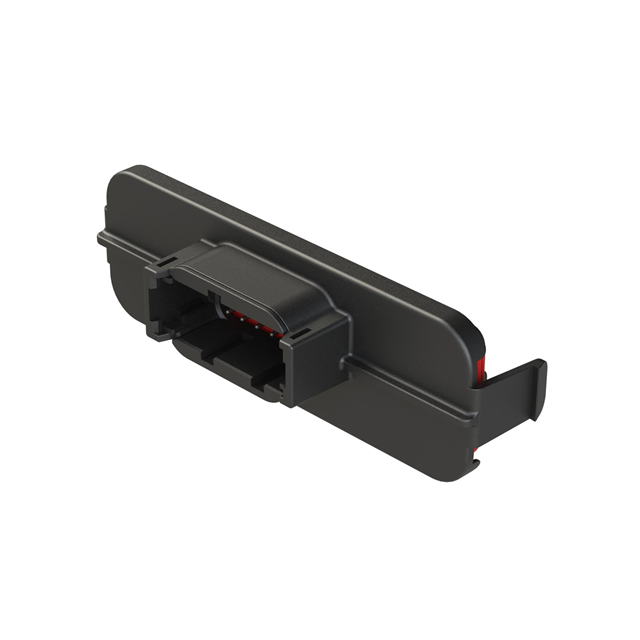

ATM13-12PB-R008
ActiveAmphenol Sine Systems Corp
CONN HEADER R/A 12POS 4.2MM
Deep-Dive with AI
Search across all available documentation for this part.
ATM13-12PB-R008
ActiveAmphenol Sine Systems Corp
CONN HEADER R/A 12POS 4.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATM13-12PB-R008 |
|---|---|
| Applications | Industrial, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Latch Holder |
| Features | Sealed, Mounting Flange |
| Ingress Protection | IP69K |
| Insulation Color | Black |
| Insulation Height | 35 mm |
| Insulation Height | 1.378 in |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle, Panel Mount, Snap-In |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 4.2 mm |
| Pitch - Mating | 0.165 in |
| Row Spacing - Mating | 0.25 in |
| Row Spacing - Mating | 6.35 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
ATM13 Series
| Part | Current Rating (Amps) | Features | Contact Shape | Applications | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Voltage Rating | Fastening Type | Contact Finish - Post | Insulation Color | Ingress Protection | Contact Type | Connector Type | Number of Rows | Contact Finish - Mating | Number of Positions Loaded | Insulation Material | Style | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Mounting Type | Shrouding | Contact Material | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | 7.5 A | Board Guide Mating Flange Mounting Flange | Circular | Automotive Industrial | 0.12 in | 3.05 mm | Solder | 250 VDC | Latch Holder | Gold | Gray | IP67 | Male Pin | Receptacle | 1 | Gold | All | Thermoplastic | Board to Cable/Wire | -55 °C | 125 °C | 1.063 in | 27 mm | Through Hole Right Angle | Shrouded - 4 Wall | Copper Alloy | |||||||
Amphenol Sine Systems Corp | 7.5 A | Mounting Flange Sealed | Circular | Automotive Industrial | 0.12 in | 3.05 mm | Solder | Latch Holder | Gold | Black | IP69K | Male Pin | Receptacle | 2 | Gold | All | Thermoplastic | Board to Cable/Wire | -55 °C | 155 °C | 1.378 in | 35 mm | Panel Mount Snap-In Through Hole Right Angle | Shrouded - 4 Wall | Copper Alloy | 12 | 0.25 in | 6.35 mm | 4.2 mm | 0.165 in | |||
Amphenol Sine Systems Corp | 7.5 A | Board Guide Mating Flange Mounting Flange Potting Wall | Circular | Automotive Industrial | 0.12 in | 3.05 mm | Solder | 250 VDC | Latch Holder | Tin | Gray | IP67 | Male Pin | Receptacle | 2 | All | Thermoplastic | Board to Cable/Wire | -55 °C | 125 °C | Through Hole Right Angle | Shrouded - 4 Wall | Copper Alloy | 8 | |||||||||
Amphenol Sine Systems Corp | 7.5 A | Mounting Flange Sealed | Circular | Automotive Industrial | Solder | Latch Holder | Tin | Black | IP67 | Male Pin | Receptacle | 2 | All | Thermoplastic | Board to Cable/Wire | -55 °C | 125 °C | 1.378 in | 35 mm | Panel Mount Snap-In Through Hole Right Angle | Shrouded - 4 Wall | Copper Alloy | 12 | 2.84 mm | 0.112 in | ||||||||
Amphenol Sine Systems Corp | 7.5 A | Board Guide Mating Flange Mounting Flange Potting Wall | Circular | Automotive Industrial | 0.12 in | 3.05 mm | Solder | 250 VDC | Latch Holder | Tin | Gray | IP67 | Male Pin | Receptacle | 2 | All | Thermoplastic | Board to Cable/Wire | -55 °C | 125 °C | 1.303 in | 33.1 mm | Through Hole Right Angle | Shrouded - 4 Wall | Copper Alloy | 12 | |||||||
Amphenol Sine Systems Corp | 7.5 A | Board Guide Mating Flange Mounting Flange Potting Wall | Circular | Automotive Industrial | 0.12 in | 3.05 mm | Solder | 250 VDC | Latch Holder | Gold | Gray | IP67 | Male Pin | Receptacle | 2 | Gold | All | Thermoplastic | Board to Cable/Wire | -55 °C | 125 °C | Through Hole Right Angle | Shrouded - 4 Wall | Copper Alloy | 8 | ||||||||
Amphenol Sine Systems Corp | 7.5 A | Board Guide Mating Flange Mounting Flange | Circular | Automotive Industrial | 0.12 in | 3.05 mm | Solder | 250 VDC | Latch Holder | Gold | Gray | IP67 | Male Pin | Receptacle | 1 | Gold | All | Thermoplastic | Board to Cable/Wire | -55 °C | 125 °C | 1.063 in | 27 mm | Through Hole Right Angle | Shrouded - 4 Wall | Copper Alloy | 2 | ||||||
Amphenol Sine Systems Corp | 7.5 A | Mounting Flange Sealed | Circular | Automotive Industrial | 0.12 in | 3.05 mm | Solder | Latch Holder | Tin | Black | IP69K | Male Pin | Receptacle | 2 | All | Thermoplastic | Board to Cable/Wire | -55 °C | 155 °C | 1.378 in | 35 mm | Panel Mount Snap-In Through Hole Right Angle | Shrouded - 4 Wall | Copper Alloy | 12 | 0.25 in | 6.35 mm | 4.2 mm | 0.165 in | ||||
Amphenol Sine Systems Corp | 7.5 A | Board Guide Mating Flange Mounting Flange Potting Wall | Circular | Automotive Industrial | 0.12 in | 3.05 mm | Solder | 250 VDC | Latch Holder | Tin | Gray | IP67 | Male Pin | Receptacle | 2 | All | Thermoplastic | Board to Cable/Wire | -55 °C | 125 °C | 1.303 in | 33.1 mm | Through Hole Right Angle | Shrouded - 4 Wall | Copper Alloy | 12 | |||||||
Amphenol Sine Systems Corp | 7.5 A | Mounting Flange Sealed | Circular | Automotive Industrial | 0.12 in | 3.05 mm | Solder | Latch Holder | Tin | Black | IP69K | Male Pin | Receptacle | 2 | All | Thermoplastic | Board to Cable/Wire | -55 °C | 155 °C | 1.378 in | 35 mm | Panel Mount Snap-In Through Hole Right Angle | Shrouded - 4 Wall | Copper Alloy | 12 | 0.25 in | 6.35 mm | 4.2 mm | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.73 | |
| 90 | $ 14.09 | |||
| 540 | $ 12.87 | |||
Description
General part information
ATM13 Series
Connector Header Panel Mount, Snap-In; Through Hole, Right Angle 12 position 0.165" (4.20mm)
