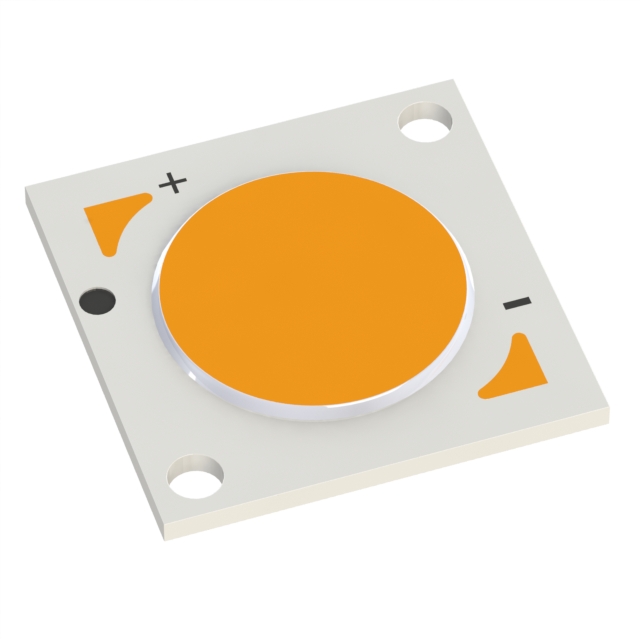

LED COB SENSUS WARM WHT SQ 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CHM-9-35-90-36-AA12-F3-3

Luminus Devices Inc.

LED COB SENSUS WARM WHT SQ 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CHM-9-35-90-36-AA12-F3-3	CHM-9-35 Series

CCT (K)	3500 K	3500 K
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	90	80 - 95
Current - Max [Max]	720 mA	1.05 - 990 mA
Current - Test	360 mA	360 - 720 mA
Features	-	With Connector
Height [z]	1.37 mm	1.37 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	9 mm	8.9 - 9.6 mm
Lumens/Watt @ Current - Test	128 lm/W	73 - 129 lm/W
Luminous Flux @ Current/Temperature	1590 lm	1115 - 3310 lm
Size / Dimension [x]	15 mm	15 - 19 mm
Size / Dimension [y]	15 mm	15 - 19 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	34.5 V	18 - 36.5 V

CHM-9-35 Series

LED COB SENSUS WARM WHT SQ 3500K

Part	Height [z]	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Configuration	Color	CCT (K)	Viewing Angle	Current - Max [Max]	Current - Test	Lens Type	Type	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Temperature - Test	Features
Luminus Devices Inc. CHM-9-35-90-36-AA12-F3-3	1.37 mm	1590 lm	15 mm	15 mm	Square	Warm, White	3500 K	120 °	720 mA	360 mA	Flat	Chip On Board (COB)	90	9 mm	128 lm/W	34.5 V	85 °C
Luminus Devices Inc. CHM-9-35-95-18-AA10-F3-3	1.37 mm	1300 lm	15 mm	15 mm	Square	Warm, White	3500 K	120 °			Flat	Chip On Board (COB)	95	8.9 mm		18 V	85 °C	With Connector
Luminus Devices Inc. CHM-9-35-95-36-AA00-F2-3	1.37 mm	1115 lm	15 mm	15 mm	Square	Warm, White	3500 K	120 °	720 mA	360 mA	Flat	Chip On Board (COB)	95	8.9 mm	88 lm/W	35 V	85 °C
Luminus Devices Inc. CHM-9-35-90-36-XD20-F4-3	1.37 mm	1450 lm	15 mm	15 mm	Square	Warm, White	3500 K	120 °	990 mA	360 mA	Flat	Chip On Board (COB)	90	9.6 mm	119 lm/W	34 V	85 °C
Luminus Devices Inc. CHM-9-35-90-36-AC00-F2-2	1.37 mm	1220 lm			Square	Warm, White	3500 K	120 °	720 mA	360 mA	Flat	Chip On Board (COB)	90	9 mm	97 lm/W	35 V	85 °C
Luminus Devices Inc. CHM-9-35-90-36-AC00-F2-3	1.37 mm	1220 lm			Square	Warm, White	3500 K	120 °	720 mA	360 mA	Flat	Chip On Board (COB)	90	9 mm	97 lm/W	35 V	85 °C
Luminus Devices Inc. CHM-9-35-95-36-XH00-F2-2	1.37 mm	1890 lm	19 mm	19 mm	Square	Warm, White	3500 K	120 °	1.05 A	720 mA	Flat	Chip On Board (COB)	95	9 mm	73 lm/W	36 V	85 °C
Luminus Devices Inc. CHM-9-35-80-36-XH00-F2-2	1.37 mm	2520 lm	19 mm	19 mm	Square	Warm, White	3500 K	120 °	1.05 A	720 mA	Flat	Chip On Board (COB)	80	9 mm	97 lm/W	36 V	85 °C
Luminus Devices Inc. CHM-9-35-80-36-XH20-F3-3	1.37 mm	3310 lm	19 mm	19 mm	Square	Warm, White	3500 K	120 °	1.08 A	720 mA	Flat	Chip On Board (COB)	80	9 mm	129 lm/W	35.5 V	85 °C
Luminus Devices Inc. CHM-9-35-95-36-AA10-F3-3	1.37 mm	1300 lm	15 mm	15 mm	Square	Warm, White	3500 K	120 °	720 mA	360 mA	Flat	Chip On Board (COB)	95	9 mm	102 lm/W	35.5 V	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1800	$ 2.39

Description

General part information

CHM-9-35 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Sensus™ White, Warm Square
