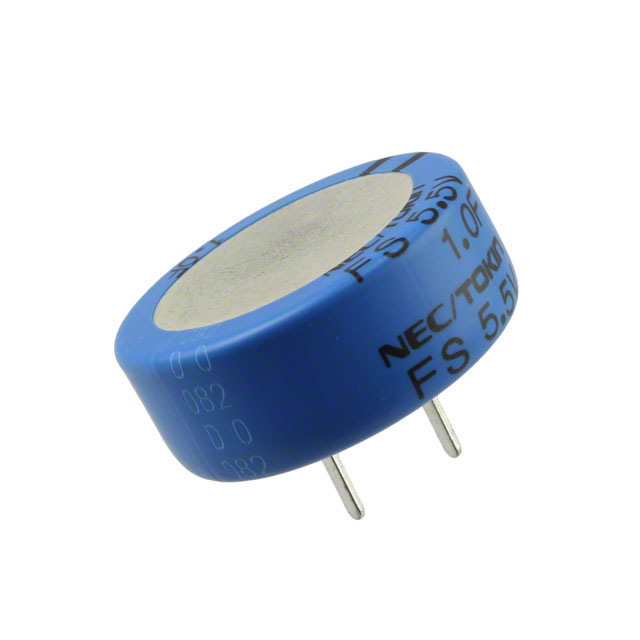

FS0H105ZF

Active

KEMET

ELECTRIC DOUBLE LAYER CAPACITOR, 5.5V, 1000000UF

Search across all available documentation for this part.

Active

KEMET

ELECTRIC DOUBLE LAYER CAPACITOR, 5.5V, 1000000UF

Technical Specifications

Parameters and characteristics for this part

Specification	FS0H105ZF

Capacitance	1 F
ESR (Equivalent Series Resistance)	7 Ohm
Height - Seated (Max)	14 mm
Height - Seated (Max) [Max]	0.551 "
Lead Spacing	10.16 mm
Lead Spacing	0.4 in
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension	28.5 mm
Size / Dimension [diameter]	1.122 in
Termination	PC Pins
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	5.5 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Tolerance [Max]	Tolerance [Min]	Termination	Capacitance	Package / Case	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]	Size / Dimension
KEMET FS0H473ZF	Through Hole	70 °C	-25 °C	5.08 mm	0.2 in	0.512 in	13 mm	5.5 V	80 %	-20 %	PC Pins	47 mF	Radial Can	40 Ohm	0.335 in	8.5 mm
KEMET FS0H105ZF	Through Hole	70 °C	-25 °C	10.16 mm	0.4 in	1.122 in		5.5 V	80 %	-20 %	PC Pins	1 F	Radial Can	7 Ohm			14 mm	0.551 "	28.5 mm
KEMET FS0H474ZF	Through Hole	70 °C	-25 °C	7.62 mm	0.3 "	0.846 "	21.5 mm	5.5 V	80 %	-20 %	PC Pins	470 mF	Radial Can	13 Ohm	0.512 "	13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 F (EDLC) Supercapacitor 5.5 V Radial, Can 7Ohm @ 1kHz
