2903299
ActivePhoenix Contact

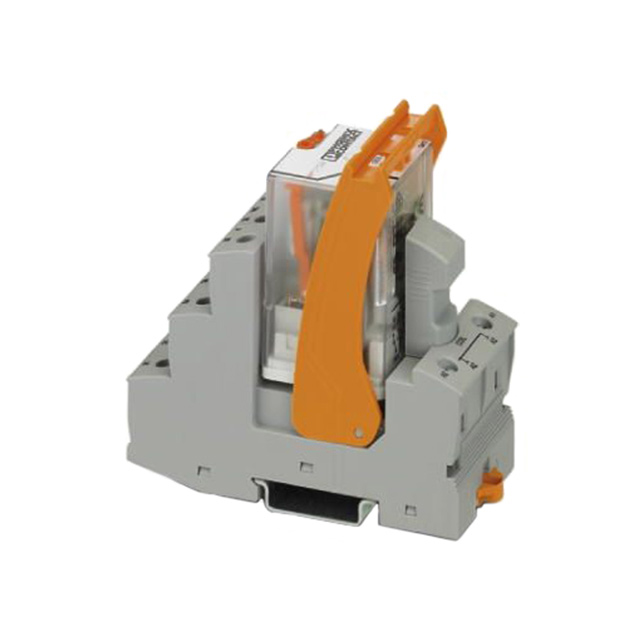

RELAY GEN PURPOSE 3PDT 6A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2903299
ActivePhoenix Contact
RELAY GEN PURPOSE 3PDT 6A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2903299 | 29032 Series |
|---|---|---|
| Approval Agency | CSA | CSA |
| Coil Current | 23 mA | 13 - 70 mA |
| Coil Resistance | 5.22 kOhms | 5 - 429 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 120 VAC | 24 - 230 VDC |
| Contact Form | 3PDT (3 Form C) | 3PST-NO (3 Form A), 3PDT (3 Form C), DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A | 6 - 11 A |
| Features | Lighted Indicator, Varistor, Socket Included | Socket Included, Diode, Lighted Indicator, Varistor |
| Load - Max Switching | - | 2250 - 4840 W |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 15 ms | 15 - 25 ms |
| Operating Temperature [Max] | 50 °C | 40 - 60 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 20 ms | 20 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal, Spring Terminal |
29032 Series
RELAY GEN PURPOSE 3PST 10A 24V
| Part | Relay Type | Contact Rating (Current) | Mounting Type | Coil Resistance | Release Time | Termination Style | Contact Form | Contact Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Coil Type | Operate Time | Approval Agency | Coil Voltage | Switching Voltage | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2903284 | General Purpose | 10 A | DIN Rail | 343 Ohms | 20 ms | Screw Terminal | 3PST-NO (3 Form A) | Silver Nickel (AgNi) | Diode, Lighted Indicator, Socket Included | -40 °C | 60 °C | 70 mA | Non Latching | 20 ms | CSA | 24 VDC | ||
Phoenix Contact 2903293 | General Purpose | 6 A | DIN Rail | 5.22 kOhms | 20 ms | Spring Terminal | 3PDT (3 Form C) | Silver Nickel (AgNi) | Lighted Indicator, Socket Included, Varistor | -40 °C | 50 °C | 23 mA | Non Latching | 15 ms | CSA | 120 VAC | 250 VAC, 250 VDC | |
Phoenix Contact 2903297 | General Purpose | 10 A | DIN Rail | 400 Ohms | 20 ms | Spring Terminal | DPDT (2 Form C) | Silver Nickel (AgNi) | Diode, Lighted Indicator, Socket Included | -40 °C | 60 °C | 60 mA | Non Latching | 18 ms | CSA | 24 VDC | 250 VAC, 250 VDC | |
Phoenix Contact 2903287 | General Purpose | 8 A | DIN Rail | 5 kOhms | 20 ms | Screw Terminal | 3PDT (3 Form C) | Silver Nickel (AgNi) | Lighted Indicator, Socket Included, Varistor | -40 °C | 40 °C | 24 mA | Non Latching | 25 ms | CSA | 120 VAC | ||
Phoenix Contact 2903274 | General Purpose | 8 A | DIN Rail | 5 kOhms | 20 ms | Spring Terminal | 3PST-NO (3 Form A) | Silver Nickel (AgNi) | Lighted Indicator, Socket Included, Varistor | -40 °C | 40 °C | 24 mA | Non Latching | 25 ms | CSA | 120 VAC | ||
Phoenix Contact 2903290 | General Purpose | 9 A | DIN Rail | 5 kOhms | 20 ms | Screw Terminal | DPDT (2 Form C) | Silver Nickel (AgNi) | Lighted Indicator, Socket Included, Varistor | -40 °C | 40 °C | 24 mA | Non Latching | 25 ms | CSA | 120 VAC | 2250 W, 3960 VA | |
Phoenix Contact 2903292 | General Purpose | 6 A | DIN Rail | 17.69 kOhms | 20 ms | Spring Terminal | 3PDT (3 Form C) | Silver Nickel (AgNi) | Lighted Indicator, Socket Included, Varistor | -40 °C | 50 °C | 13 mA | Non Latching | 15 ms | CSA | 230 VAC | 250 VAC, 250 VDC | |
Phoenix Contact 2903288 | General Purpose | 10 A | DIN Rail | 429 Ohms | 20 ms | Screw Terminal | 3PDT (3 Form C) | Silver Nickel (AgNi) | Diode, Lighted Indicator, Socket Included | -40 °C | 60 °C | 56 mA | Non Latching | 20 ms | CSA | 24 VDC | ||
Phoenix Contact 2903294 | General Purpose | 8.5 A | DIN Rail | 400 Ohms | 20 ms | Spring Terminal | 3PDT (3 Form C) | Silver Nickel (AgNi) | Diode, Lighted Indicator, Socket Included | -40 °C | 60 °C | 60 mA | Non Latching | 18 ms | CSA | 24 VDC | 250 VAC, 250 VDC | |
Phoenix Contact 2903291 | General Purpose | 11 A | DIN Rail | 429 Ohms | 20 ms | Screw Terminal | DPDT (2 Form C) | Silver Nickel (AgNi) | Diode, Lighted Indicator, Socket Included | -40 °C | 60 °C | 56 mA | Non Latching | 20 ms | CSA | 24 VDC | 2750 W, 4840 VA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.41 | |
Description
General part information
29032 Series
General Purpose Relay 3PDT (3 Form C) 120VAC Coil DIN Rail
