299-83-318-10-001101

Active

PRECI-DIP SA

CONN IC DIP SOCKET 18POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

299-83-318-10-001101

Active

PRECI-DIP SA

CONN IC DIP SOCKET 18POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	299-83-318-10-001101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	0.128 in
Termination Post Length [x]	3.24 mm
Type	0.3 "
Type	7.62 mm
Type	DIP

299-83 Series

Part	Pitch - Post	Pitch - Post	Contact Finish - Post	Type	Type	Type	Contact Material - Post [custom]	Current Rating (Amps)	Housing Material	Features	Contact Resistance	Contact Material - Mating	Material Flammability Rating	Termination	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination Post Length [x]	Termination Post Length [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 299-83-316-11-001101	2.54 mm	0.1 in	Tin	0.3 "	7.62 mm	DIP	Brass	1 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	10 mOhm	Beryllium Copper	UL94 V-0	Solder	16	-55 °C	125 °C	29.5 Áin	0.75 Ám	0.128 in	3.24 mm	0.1 in	2.54 mm	Gold
PRECI-DIP SA 299-83-630-10-002101	2.54 mm	0.1 in	Tin	0.6 in	15.24 mm	DIP	Brass	1 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	10 mOhm	Beryllium Copper	UL94 V-0	Solder	30	-55 °C	125 °C	29.5 Áin	0.75 Ám	0.128 in	3.24 mm	0.1 in	2.54 mm	Gold	2	15
PRECI-DIP SA 299-83-318-10-001101	2.54 mm	0.1 in	Tin	0.3 "	7.62 mm	DIP	Brass	1 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	10 mOhm	Beryllium Copper	UL94 V-0	Solder	18	-55 °C	125 °C	29.5 Áin	0.75 Ám	0.128 in	3.24 mm	0.1 in	2.54 mm	Gold
PRECI-DIP SA 299-83-628-10-002101	2.54 mm	0.1 in	Tin	0.6 in	15.24 mm	DIP	Brass	1 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	10 mOhm	Beryllium Copper	UL94 V-0	Solder	28	-55 °C	125 °C	29.5 Áin	0.75 Ám	0.128 in	3.24 mm	0.1 in	2.54 mm	Gold
PRECI-DIP SA 299-83-620-10-002101	2.54 mm	0.1 in	Tin	0.6 in	15.24 mm	DIP	Brass	1 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	10 mOhm	Beryllium Copper	UL94 V-0	Solder	20	-55 °C	125 °C	29.5 Áin	0.75 Ám	0.128 in	3.24 mm	0.1 in	2.54 mm	Gold
PRECI-DIP SA 299-83-210-10-001101	2.54 mm	0.1 in	Tin	0.2 in	5.08 mm	DIP	Brass	1 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	10 mOhm	Beryllium Copper	UL94 V-0	Solder		-55 °C	125 °C	29.5 Áin	0.75 Ám	0.128 in	3.24 mm	0.1 in	2.54 mm	Gold			2 x 5	10
PRECI-DIP SA 299-83-640-10-002101	2.54 mm	0.1 in	Tin	0.6 in	15.24 mm	DIP	Brass	1 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	10 mOhm	Beryllium Copper	UL94 V-0	Solder	40	-55 °C	125 °C	29.5 Áin	0.75 Ám	0.128 in	3.24 mm	0.1 in	2.54 mm	Gold	2	20
PRECI-DIP SA 299-83-318-11-001101	2.54 mm	0.1 in	Tin	0.3 "	7.62 mm	DIP	Brass	1 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	10 mOhm	Beryllium Copper	UL94 V-0	Solder	18	-55 °C	125 °C	29.5 Áin	0.75 Ám	0.128 in	3.24 mm	0.1 in	2.54 mm	Gold
PRECI-DIP SA 299-83-310-10-001101	2.54 mm	0.1 in	Tin	0.3 "	7.62 mm	DIP	Brass	1 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	10 mOhm	Beryllium Copper	UL94 V-0	Solder		-55 °C	125 °C	29.5 Áin	0.75 Ám	0.128 in	3.24 mm	0.1 in	2.54 mm	Gold			2 x 5	10
PRECI-DIP SA 299-83-316-10-001101	2.54 mm	0.1 in	Tin	0.3 "	7.62 mm	DIP	Brass	1 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	10 mOhm	Beryllium Copper	UL94 V-0	Solder	16	-55 °C	125 °C	29.5 Áin	0.75 Ám	0.128 in	3.24 mm	0.1 in	2.54 mm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	966	$ 4.01

Description

General part information

299-83 Series

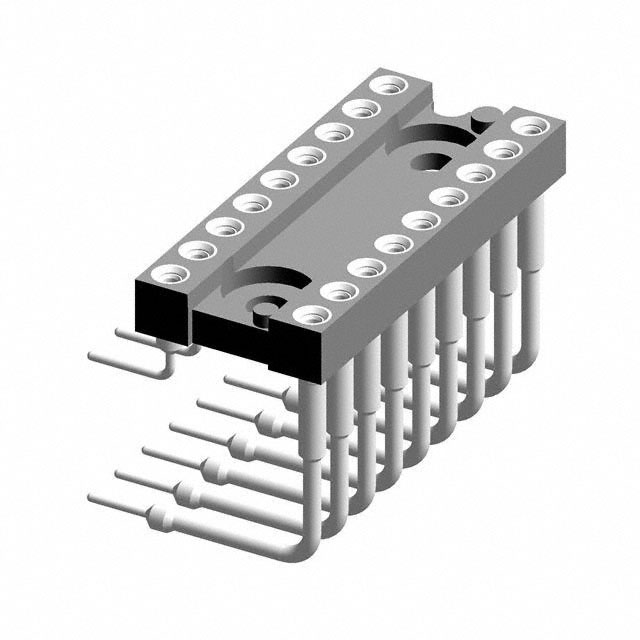

18 (2 x 9) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole, Right Angle, Horizontal

Documents

Technical documentation and resources

No documents available
