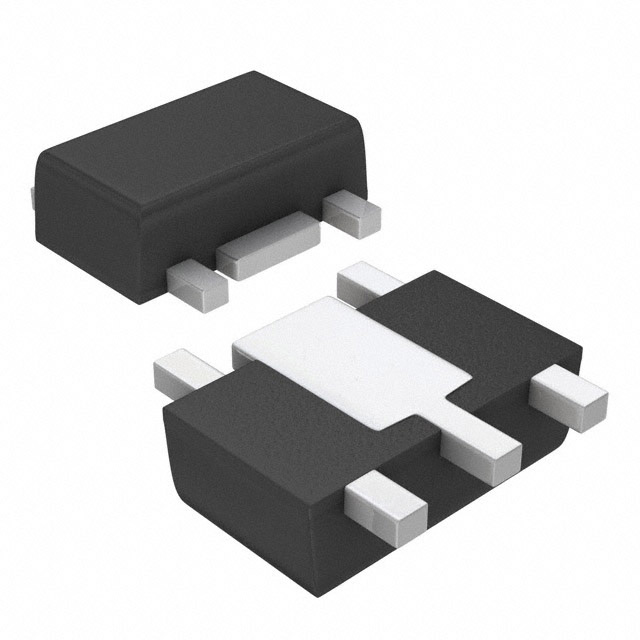

AH289-YG-13

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Search across all available documentation for this part.

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Technical Specifications

Parameters and characteristics for this part

Specification	AH289-YG-13

Applications	Fan Motor Driver
Current - Output	400 mA
Function	Driver - Fully Integrated, Control and Power Stage
Interface	On/Off
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Low Side (2)
Package / Case	SOT-89-5/6
Supplier Device Package	SOT-89-5
Technology	Power MOSFET
Voltage - Load [Max]	28 V
Voltage - Load [Min]	3.8 V
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	3.8 V

NRND = Not Recommended for New Design

Part	Applications	Technology	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Motor Type - AC, DC	Current - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Function	Output Configuration	Voltage - Load [Max]	Voltage - Load [Min]	Interface
Diodes Inc AH289-YG-13	Fan Motor Driver	Power MOSFET	SOT-89-5	150 °C	-40 °C	Surface Mount	Brushless DC (BLDC)	400 mA	3.8 V	28 V	SOT-89-5/6	Driver - Fully Integrated Control and Power Stage	Low Side (2)	28 V	3.8 V	On/Off
