91-BCR120-CRO
ActiveVisual Communications Company - VCC

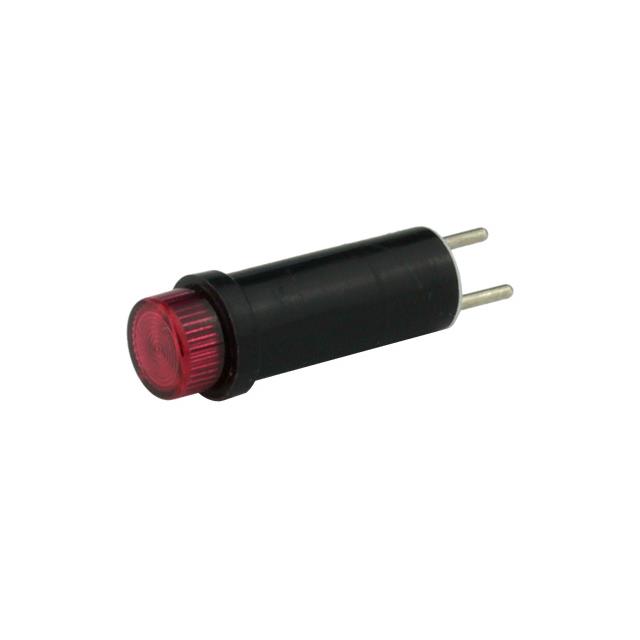

PMI RED 626NM 120V RD CLR CYL
Deep-Dive with AI
Search across all available documentation for this part.
91-BCR120-CRO
ActiveVisual Communications Company - VCC
PMI RED 626NM 120V RD CLR CYL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 91-BCR120-CRO |
|---|---|
| Current | 3.5 mA |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size [diameter] | 7.1 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 120 mcd |
| Panel Cutout Dimensions [x] | 7.37 mm |
| Panel Cutout Dimensions [x] | 0.29 in |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | 0.201 in |
| Termination Style | Wire Wrap |
| Termination Style | 5.1 mm |
| Type | LED |
| Viewing Angle | 35 ° |
| Voltage | 120 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 7.50 | |
Description
General part information
91-BCR120 Series
LED Panel Indicator Red Clear 35° 120V 3.5mA Wire Wrap, 0.201" (5.1mm)
Documents
Technical documentation and resources
No documents available
