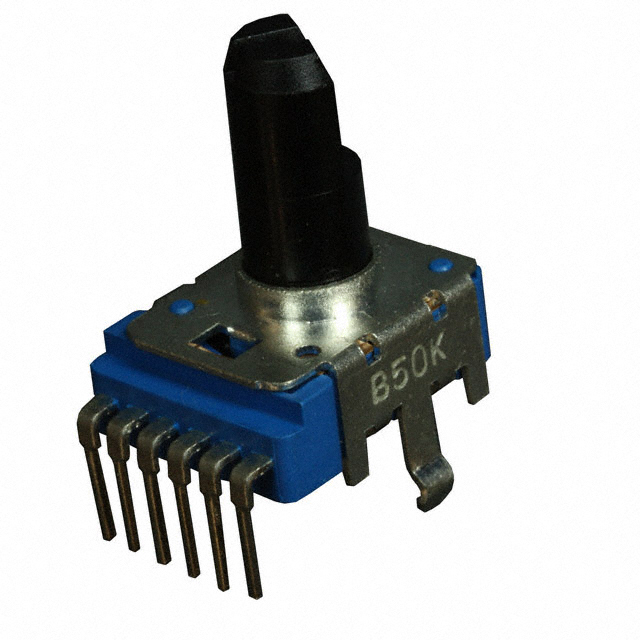

PTV112-4420A-B503

Active

Bourns Inc.

POT 50K OHM 1/20W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTV112-4420A-B503

Active

Bourns Inc.

POT 50K OHM 1/20W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTV112-4420A-B503

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [z]	20 mm
Actuator Length [z]	0.787 in
Actuator Type	Flatted
Adjustment Type	Top Adjustment
Built in Switch	False
Mounting Type	Through Hole, Snap In
Number of Gangs	2
Number of Turns	1
Power (Watts)	0.05 W
Power (Watts)	50 mW
Resistance (Ohms)	50 kOhms
Resistive Material	Carbon
Rotation	300 ░
Size - Body [x]	15.5 mm
Size - Body [x]	0.61 "
Size - Body [y]	0.484 "
Size - Body [y]	12.3 mm
Taper	Linear
Termination Style	Board Locks, PC Pins
Tolerance	20 %

PTV112 Series

Part	Number of Turns	Power (Watts)	Power (Watts)	Actuator Length [z]	Actuator Length [z]	Actuator Type	Termination Style	Adjustment Type	Taper	Tolerance	Mounting Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Resistance (Ohms)	Number of Gangs	Size - Body [y]	Size - Body [x]	Size - Body [x]	Size - Body [y]	Resistive Material	Built in Switch	Resistance (Ohms)	Bushing Thread
Bourns Inc. PTV112-4420A-C502	1	0.05 W	50 mW	20 mm	0.787 in	Flatted	Board Locks PC Pins	Top Adjustment	Reverse Logarithmic	20 %	Snap In Through Hole	0.236 in	6 mm	300 ░	5 kOhms	2	0.484 "	15.5 mm	0.61 "	12.3 mm	Carbon
Bourns Inc. PTV112-4420A-B503	1	0.05 W	50 mW	20 mm	0.787 in	Flatted	Board Locks PC Pins	Top Adjustment	Linear	20 %	Snap In Through Hole	0.236 in	6 mm	300 ░	50 kOhms	2	0.484 "	15.5 mm	0.61 "	12.3 mm	Carbon
Bourns Inc. PTV112-4420A-A503	1	0.05 W	50 mW	20 mm	0.787 in	Flatted	Board Locks PC Pins	Top Adjustment	Logarithmic	20 %	Snap In Through Hole	0.236 in	6 mm	300 ░	50 kOhms	2	0.484 "	15.5 mm	0.61 "	12.3 mm	Carbon
Bourns Inc. PTV112-4220A-B103	1	0.05 W	50 mW	20 mm	0.787 in	Flatted	Board Locks PC Pins	Top Adjustment	Linear	20 %	Snap In Through Hole	0.236 in	6 mm	300 ░		2	0.484 "	15.5 mm	0.61 "	12.3 mm	Carbon	Detent	10k
Bourns Inc. PTV112-3212A-B103	1	0.05 W	50 mW	12.5 mm	0.492 in	Flatted	Board Locks PC Pins	Top Adjustment	Linear	20 %		0.236 in	6 mm	300 ░		2	0.484 "	15.5 mm	0.61 "	12.3 mm	Carbon	Detent	10k	M9 x 0.75
Bourns Inc. PTV112-4420A-B103	1	0.05 W	50 mW	20 mm	0.787 in	Flatted	Board Locks PC Pins	Top Adjustment	Linear	20 %	Snap In Through Hole	0.236 in	6 mm	300 ░		2	0.484 "	15.5 mm	0.61 "	12.3 mm	Carbon		10k
Bourns Inc. PTV112-4220A-A1503	1	0.05 W	50 mW	20 mm	0.787 in	Flatted	Board Locks PC Pins	Top Adjustment	Logarithmic	20 %	Snap In Through Hole	0.236 in	6 mm	300 ░	50 kOhms	2	0.484 "	15.5 mm	0.61 "	12.3 mm	Carbon	Detent
Bourns Inc. PTV112-4420A-B104	1	0.05 W	50 mW	20 mm	0.787 in	Flatted	Board Locks PC Pins	Top Adjustment	Linear	20 %	Snap In Through Hole	0.236 in	6 mm	300 ░	100 kOhms	2	0.484 "	15.5 mm	0.61 "	12.3 mm	Carbon
Bourns Inc. PTV112-4420A-C503	1	0.05 W	50 mW	20 mm	0.787 in	Flatted	Board Locks PC Pins	Top Adjustment	Reverse Logarithmic	20 %	Snap In Through Hole	0.236 in	6 mm	300 ░	50 kOhms	2	0.484 "	15.5 mm	0.61 "	12.3 mm	Carbon
Bourns Inc. PTV112-3412A-A203	1	0.05 W	50 mW	12.5 mm	0.492 in	Flatted	Board Locks PC Pins	Top Adjustment	Logarithmic	20 %		0.236 in	6 mm	300 ░	20 kOhms	2	0.484 "	15.5 mm	0.61 "	12.3 mm	Carbon			M9 x 0.75

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.13
		10	$ 1.00
		25	$ 0.90
		50	$ 0.87
		100	$ 0.83
		300	$ 0.78
		500	$ 0.67
		1000	$ 0.62
		5000	$ 0.59

Description

General part information

PTV112 Series

50k Ohm 2 Gang Linear Through Hole, Snap In Potentiometer 1.0 Turns Carbon 0.05W, 1/20W PC Pins, Board Locks
