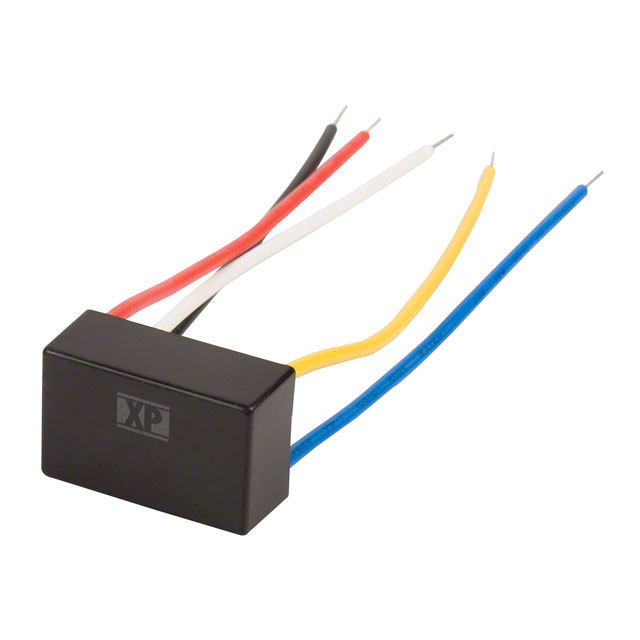

LDU4860S350-WD

Obsolete

XP POWER

LED DRIVER CC BUCK 2-57V 350MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LDU4860S350-WD

Obsolete

XP POWER

LED DRIVER CC BUCK 2-57V 350MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDU4860S350-WD

Approval Agency	EN
Current - Output (Max) [Max]	350 mA
Dimming	Analog, PWM
Efficiency	97 %
Features	Remote On/Off, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	20 W
Ratings	IP67
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.49 in
Size / Dimension [z]	12.5 mm
Termination Style	Wire Leads
Topology	Buck
Type	Constant Current
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	7 V
Voltage - Output [Max]	57 V
Voltage - Output [Min]	2 V
Weight	0.04 lb
Weight	18.14 g

LDU4860 Series

Part	Current - Output (Max) [Max]	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Power (Watts)	Dimming	Type	Ratings	Number of Outputs	Mounting Type	Weight	Weight	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Approval Agency	Efficiency	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Package / Case
XP POWER LDU4860S350-WD	350 mA	Wire Leads	57 V	2 V	85 °C	-40 °C	Buck	20 W	Analog PWM	Constant Current	IP67	1	Chassis Mount	0.04 lb	18.14 g	7 V	60 V	EN	97 %	Remote On/Off SCP	31.8 mm	0.8 in	1.25 "	0.49 in	12.5 mm	20.3 mm
XP POWER LDU4860S1000	1 A		48 V	2 V	55 °C	-40 °C	Buck	48 W	Analog PWM	Constant Current		1	Through Hole	0.039 lb	17.69 g	7 V	60 V	EN	97 %	Remote On/Off SCP	31.8 mm	0.8 in	1.25 "	0.49 in	12.5 mm	20.3 mm	23-DIP Module 9 Leads
XP POWER LDU4860S700-WD	700 mA	Wire Leads	57 V	2 V	70 °C	-40 °C	Buck	40 W	Analog PWM	Constant Current	IP67	1	Chassis Mount	0.04 lb	18.14 g	7 V	60 V	EN	97 %	Remote On/Off SCP	31.8 mm	0.8 in	1.25 "	0.49 in	12.5 mm	20.3 mm
XP POWER LDU4860S1000-WD	1 A	Wire Leads	48 V	2 V	55 °C	-40 °C	Buck	48 W	Analog PWM	Constant Current	IP67	1	Chassis Mount	0.04 lb	18.14 g	7 V	60 V	EN	97 %	Remote On/Off SCP	31.8 mm	0.8 in	1.25 "	0.49 in	12.5 mm	20.3 mm
XP POWER LDU4860S150	150 mA		57 V	2 V	85 °C	-40 °C	Buck	9 W	Analog PWM	Constant Current		1	Through Hole	0.039 lb	17.69 g	7 V	60 V	EN	97 %	Remote On/Off SCP	31.8 mm	0.8 in	1.25 "	0.49 in	12.5 mm	20.3 mm	23-DIP Module 9 Leads
XP POWER LDU4860S500	500 mA		57 V	2 V	70 °C	-40 °C	Buck	29 W	Analog PWM	Constant Current		1	Through Hole	0.039 lb	17.69 g	7 V	60 V	EN	97 %	Remote On/Off SCP	31.8 mm	0.8 in	1.25 "	0.49 in	12.5 mm	20.3 mm	23-DIP Module 9 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.00

Description

General part information

LDU4860 Series

350mA 2 ~ 57V Constant Current LED Driver Buck Topology 1 Output
