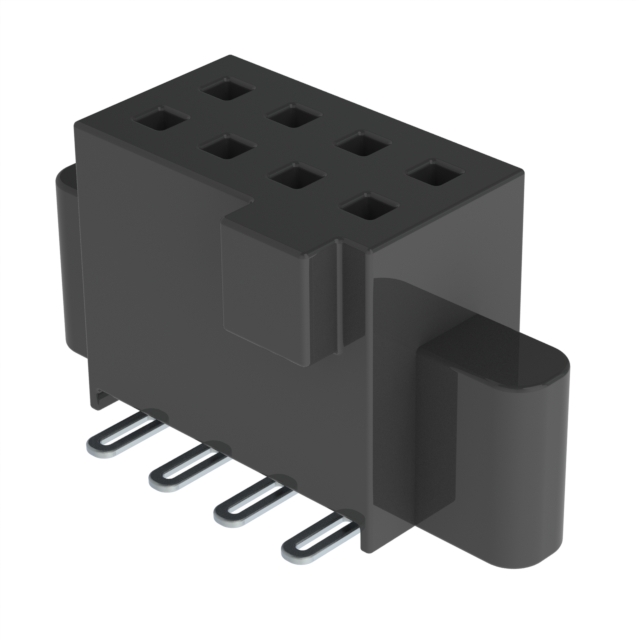

SFM-104-02-L-D-K-TR

Active

Samtec Inc.

CONN RCPT 8POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFM-104-02-L-D-K-TR

Active

Samtec Inc.

CONN RCPT 8POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFM-104-02-L-D-K-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	11.76 mm, 6.3 mm, 11.61 mm, 8.08 mm, 6.15 mm, 7.92 mm, 9.86 mm, 9.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFM-104 Series

Part	Termination	Contact Finish - Post	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Material	Style	Number of Rows	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Fastening Type	Mounting Type	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Color	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post	Features	Contact Length - Post [x]
Samtec Inc. SFM-104-L2-L-D-LC	Solder	Tin	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	-55 °C	125 °C	Beryllium Copper	Liquid Crystal Polymer (LCP)	Board to Board Cable	2	8	0.185 in	4.7 mm	Square	Push-Pull	Surface Mount	3.2 A	250 VAC	Gold	10 çin	0.25 çm	Female Socket	0.05 in	1.27 mm	0.05 in	1.27 mm	Receptacle	Black	UL94 V-0	All
Samtec Inc. SFM-104-L3-L-D-LC	Solder	Tin	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	-55 °C	125 °C	Beryllium Copper	Liquid Crystal Polymer (LCP)	Board to Board Cable	2	8	0.18 "	4.57 mm	Square	Push-Pull	Through Hole	3.2 A	250 VAC	Gold	10 çin	0.25 çm	Female Socket	0.05 in	1.27 mm	0.05 in	1.27 mm	Receptacle	Black	UL94 V-0	All	0.075 in	1.91 mm
Samtec Inc. SFM-104-T2-S-D-A	Solder	Tin	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	-55 °C	125 °C	Beryllium Copper	Liquid Crystal Polymer (LCP)	Board to Board Cable	2	8	0.185 in	4.7 mm	Square	Push-Pull	Surface Mount	3.2 A	250 VAC	Gold	30 Áin	0.76 Ám	Female Socket	0.05 in	1.27 mm	0.05 in	1.27 mm	Receptacle	Black	UL94 V-0	All			Board Guide
Samtec Inc. SFM-104-T1-L-D-LC	Solder	Tin	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	-55 °C	125 °C	Beryllium Copper	Liquid Crystal Polymer (LCP)	Board to Board Cable	2	8	0.18 "	4.57 mm	Square	Push-Pull	Through Hole	3.2 A	250 VAC	Gold	10 çin	0.25 çm	Female Socket	0.05 in	1.27 mm	0.05 in	1.27 mm	Receptacle	Black	UL94 V-0	All	0.12 in			3.05 mm
Samtec Inc. SFM-104-L3-L-D-A	Solder	Tin	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	-55 °C	125 °C	Beryllium Copper	Liquid Crystal Polymer (LCP)	Board to Board Cable	2	8	0.18 "	4.57 mm	Square	Push-Pull	Through Hole	3.2 A	250 VAC	Gold	10 çin	0.25 çm	Female Socket	0.05 in	1.27 mm	0.05 in	1.27 mm	Receptacle	Black	UL94 V-0	All	0.075 in	1.91 mm	Board Guide
Samtec Inc. SFM-104-01-L-D-LC	Solder	Tin	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	-55 °C	125 °C	Beryllium Copper	Liquid Crystal Polymer (LCP)	Board to Board Cable	2	8	0.18 "	4.57 mm	Square	Push-Pull	Through Hole	3.2 A	250 VAC	Gold	10 çin	0.25 çm	Female Socket	0.05 in	1.27 mm	0.05 in	1.27 mm	Receptacle	Black	UL94 V-0	All	0.12 in			3.05 mm
Samtec Inc. SFM-104-01-S-D-A	Solder	Tin	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	-55 °C	125 °C	Beryllium Copper	Liquid Crystal Polymer (LCP)	Board to Board Cable	2	8	0.18 "	4.57 mm	Square	Push-Pull	Through Hole	3.2 A	250 VAC	Gold	30 Áin	0.76 Ám	Female Socket	0.05 in	1.27 mm	0.05 in	1.27 mm	Receptacle	Black	UL94 V-0	All	0.12 in		Board Guide	3.05 mm
Samtec Inc. SFM-104-01-L-D-DS	Solder	Tin	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	-55 °C	125 °C	Beryllium Copper	Liquid Crystal Polymer (LCP)	Board to Board Cable	2	8	0.18 "	4.57 mm	Square	Push-Pull	Through Hole	3.2 A	250 VAC	Gold	10 çin	0.25 çm	Female Socket	0.05 in	1.27 mm	0.05 in	1.27 mm	Receptacle	Black	UL94 V-0	All	0.12 in		Mounting Flange Mounting Hardware	3.05 mm
Samtec Inc. SFM-104-02-L-D-K-TR	Solder	Tin	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	-55 °C	125 °C	Beryllium Copper	Liquid Crystal Polymer (LCP)	Board to Board Cable	2	8	0.185 in	4.7 mm	Square	Push-Pull	Surface Mount	3.2 A	250 VAC	Gold	10 çin	0.25 çm	Female Socket	0.05 in	1.27 mm	0.05 in	1.27 mm	Receptacle	Black	UL94 V-0	All			Pick and Place
Samtec Inc. SFM-104-L1-S-D	Solder	Tin	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	-55 °C	125 °C	Beryllium Copper	Liquid Crystal Polymer (LCP)	Board to Board Cable	2	8	0.18 "	4.57 mm	Square	Push-Pull	Through Hole	3.2 A	250 VAC	Gold	30 Áin	0.76 Ám	Female Socket	0.05 in	1.27 mm	0.05 in	1.27 mm	Receptacle	Black	UL94 V-0	All	0.12 in			3.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	700	$ 2.26

Description

General part information

SFM-104 Series

8 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
