132409-10

Active

Amphenol RF

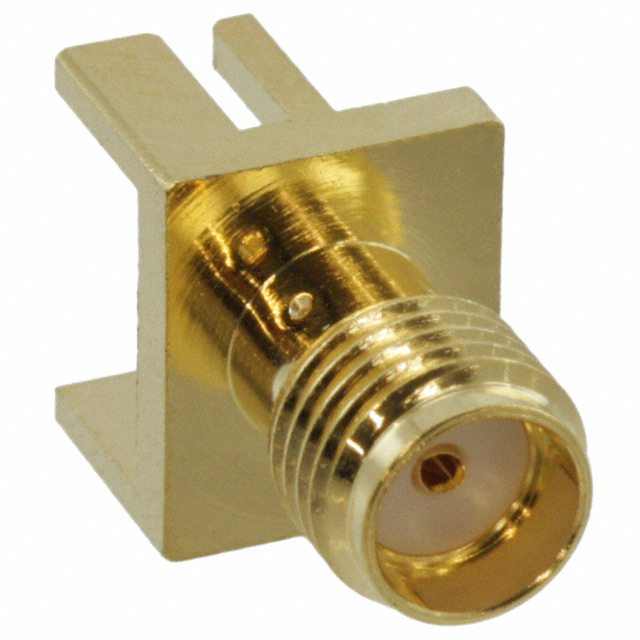

CONN SMA RCPT STR 50OHM EDGE MNT

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA RCPT STR 50OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	132409-10

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Material	Center Contact Material	Number of Ports	Dielectric Material	Mating Cycles	Center Contact Plating	Body Finish	Mounting Type	Impedance	Frequency - Max [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Housing Color	Shield Termination	Connector Style
Amphenol RF 132409-10	Brass	Beryllium Copper	1	Polytetrafluoroethylene (PTFE)	500	Gold	Gold	Board Edge End Launch	50 Ohms	18 GHz	Female Socket Receptacle	-65 ░C	165 °C	Solder	Gold	Solder	SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Solder
