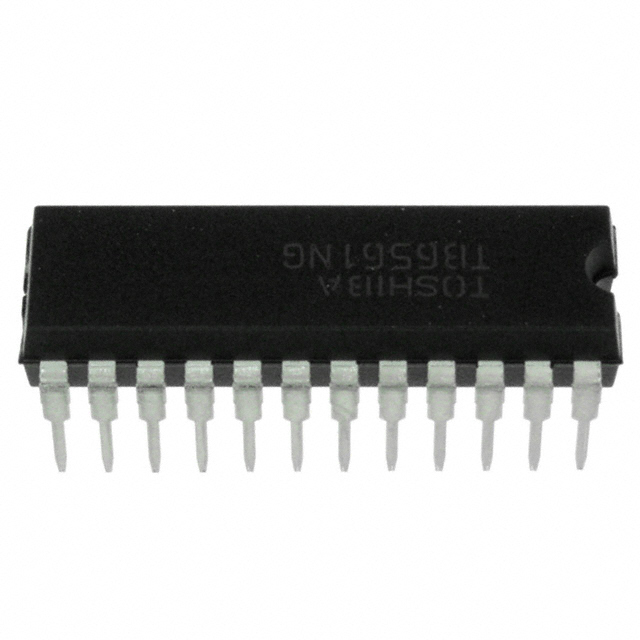

TB6561NG

Obsolete

Toshiba Semiconductor and Storage

IC MOTOR DRIVER 10V-36V 24SDIP

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IC MOTOR DRIVER 10V-36V 24SDIP

Technical Specifications

Parameters and characteristics for this part

Specification	TB6561NG

Applications	General Purpose
Current - Output	1.5 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	PWM
Motor Type - AC, DC	Brushed DC
Mounting Type	Through Hole
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (4)
Package / Case	0.3 in
Package / Case	24-SDIP
Package / Case	7.62 mm
Supplier Device Package	24-SDIP
Technology	Bi-CMOS
Voltage - Load [Max]	36 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	36 V
Voltage - Supply [Min]	10 VDC

Part	Output Configuration	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type - AC, DC	Technology	Package / Case	Package / Case	Package / Case	Interface	Voltage - Load [Max]	Voltage - Load [Min]	Current - Output	Supplier Device Package	Function	Mounting Type
Toshiba Semiconductor and Storage TB6561NG	Half Bridge (4)	General Purpose	10 VDC	36 V	-20 °C	85 C	Brushed DC	Bi-CMOS	0.3 in	24-SDIP	7.62 mm	PWM	36 V	10 V	1.5 A	24-SDIP	Driver - Fully Integrated Control and Power Stage	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver Bi-CMOS PWM 24-SDIP
