Specification	A33230LLHALT-XZ-S-AR-03

Actuator Type	Not Included, External Magnet
For Measuring	Rotary Position
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Output	Analog Voltage
Output Signal	Cosine, Sine

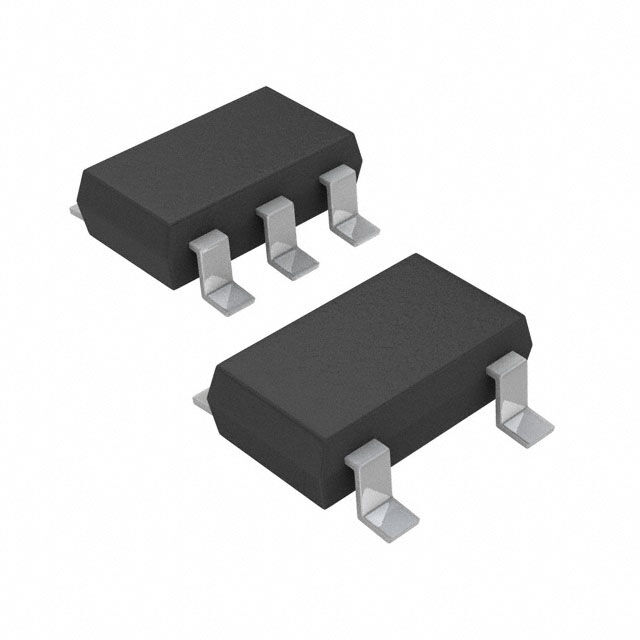

Package / Case	TSOT-23-5, SOT-23-5 Thin
Package Name	SOT-23W-5
Resistance	8 kOhm
Technology	Hall Effect
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	4.5 V

A33230 Series

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Actuator Type	Package Name	Mounting Type	For Measuring	Output	Resistance	Output Signal	Operating Temperature (Min)	Operating Temperature (Max)	Technology	Package / Case	Output Type	Axis	Current - Supply (Max)	Resolution	Current - Output (Max)	Sensing Range (Min)	Sensing Range (Max)	Bandwidth
Allegro MicroSystems A33230LLHALT-XZ-S-AR-03	5.5 V	4.5 V	External Magnet Not Included	SOT-23W-5	Surface Mount	Rotary Position	Analog Voltage	8 kOhm	Cosine Sine	-40 °C	150 °C	Hall Effect	SOT-23-5 Thin TSOT-23-5
Allegro MicroSystems A33230LLHALT-YZ-S-AR-10	5.5 V	4.5 V		SOT-23W-5	Surface Mount					-40 °C	150 °C	Hall Effect	SOT-23-5 Thin TSOT-23-5	Analog Voltage	Y Z	10 mA	12 b	1 mA	-100 mT	100 mT	75 kHz
