Q-1U05A0003003i

Active

Amphenol Custom Cable

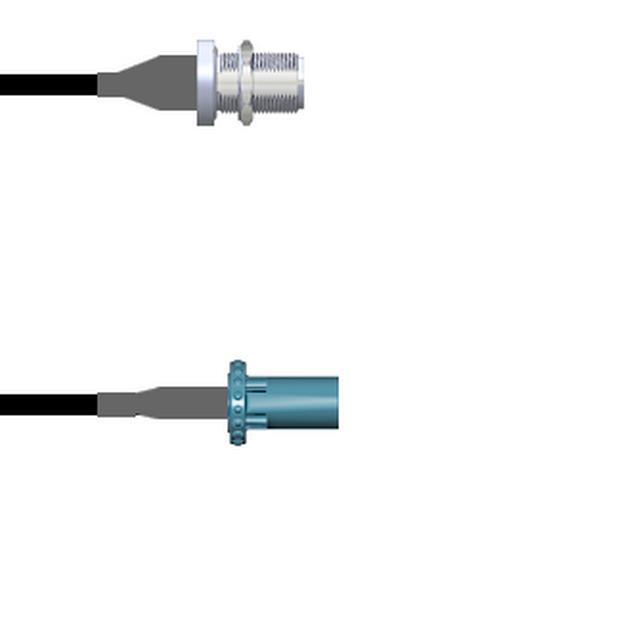

CBL ASSY NTYPE-FAKRA JACK-PLG 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U05A0003003i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA JACK-PLG 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U05A0003003i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-1U05A0 Series

Part	1st Contact Gender	1st Connector	Overall Impedance	Cable Type	2nd Connector	1st Connector Mounting Type	Frequency - Max [Max]	Color	Features	2nd Connector Mounting Type	Length	Length	Style	2nd Contact Gender	1st Connector Mounting Feature	Length
Amphenol Custom Cable Q-1U05A0003009i	Female	N-Type Jack	50 Ohms	RG-174	Fakra Plug	Panel Mount	3 GHz	Black	Shielded	Free Hanging (In-Line)	9 "	228.6 mm	N-Type to Fakra	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1U05A0005036i	Female	N-Type Jack	50 Ohms	RG-316	Fakra Plug	Panel Mount	3 GHz	Copper	Shielded	Free Hanging (In-Line)	36 in	91.44 cm	N-Type to Fakra	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1U05A0005003M	Female	N-Type Jack	50 Ohms	RG-316	Fakra Plug	Panel Mount	3 GHz	Copper	Shielded	Free Hanging (In-Line)	118.1 in	3 m	N-Type to Fakra	Male	Bulkhead - Front Side Nut	9.8 '
Amphenol Custom Cable Q-1U05A00030.5M	Female	N-Type Jack	50 Ohms	RG-174	Fakra Plug	Panel Mount	3 GHz	Black	Shielded	Free Hanging (In-Line)	19.69 "	50 cm	N-Type to Fakra	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1U05A0003003i	Female	N-Type Jack	50 Ohms	RG-174	Fakra Plug	Panel Mount	3 GHz	Black	Shielded	Free Hanging (In-Line)	3 in	76.2 mm	N-Type to Fakra	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1U05A00032.5M	Female	N-Type Jack	50 Ohms	RG-174	Fakra Plug	Panel Mount	3 GHz	Black	Shielded	Free Hanging (In-Line)	98.4 in	2.5 m	N-Type to Fakra	Male	Bulkhead - Front Side Nut	8.2 '
Amphenol Custom Cable Q-1U05A0003003M	Female	N-Type Jack	50 Ohms	RG-174	Fakra Plug	Panel Mount	3 GHz	Black	Shielded	Free Hanging (In-Line)	118.1 in	3 m	N-Type to Fakra	Male	Bulkhead - Front Side Nut	9.8 '
Amphenol Custom Cable Q-1U05A0003048i	Female	N-Type Jack	50 Ohms	RG-174	Fakra Plug	Panel Mount	3 GHz	Black	Shielded	Free Hanging (In-Line)	48 in	1200 mm	N-Type to Fakra	Male	Bulkhead - Front Side Nut	4 ft
Amphenol Custom Cable Q-1U05A0003060i	Female	N-Type Jack	50 Ohms	RG-174	Fakra Plug	Panel Mount	3 GHz	Black	Shielded	Free Hanging (In-Line)	5 '	1.5 m	N-Type to Fakra	Male	Bulkhead - Front Side Nut	5 ft
Amphenol Custom Cable Q-1U05A0003012i	Female	N-Type Jack	50 Ohms	RG-174	Fakra Plug	Panel Mount	3 GHz	Black	Shielded	Free Hanging (In-Line)	12 "	304.8 mm	N-Type to Fakra	Male	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 84.93
		25	$ 83.33
		50	$ 81.72
		100	$ 80.12
		250	$ 78.51

Description

General part information

Q-1U05A0 Series

Cable Assembly Coaxial N-Type to Fakra RG-174 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
