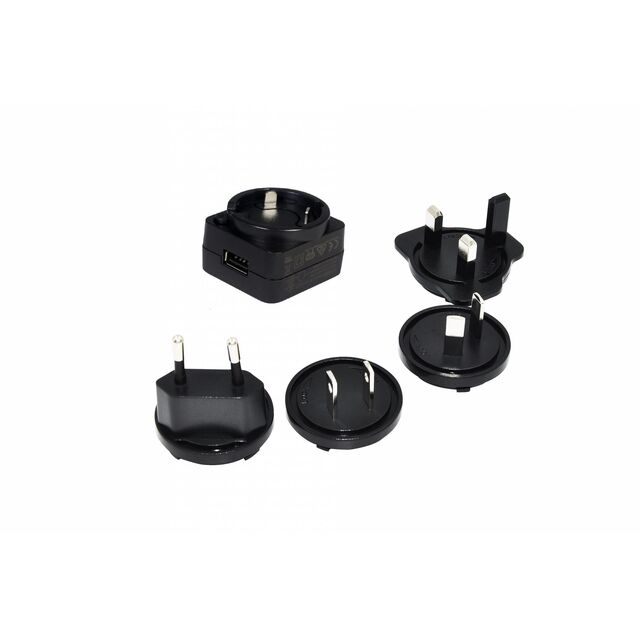

KTPS05-0501USB-MULTI EU PLUG

Active

Volgen + Furuno

USB-MULTI EU PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KTPS05-0501USB-MULTI EU PLUG

Active

Volgen + Furuno

USB-MULTI EU PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 1.21

Description

General part information

KTPS05 Series

USB-MULTI EU PLUG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KTPS05-0501USB-MULTI EU PLUG	KTPS05 Series

Accessory Type	Input Plug, Europe	Input Plug, United Kingdom, Input Plug, Europe
Applications	-	ITE (Commercial)
Approval Agency	-	UL, cUL, IEC, CE, GS
Cord Length	-	1.5 m
Cord Length	-	59 in
Current - Output (Max)	-	1 - 600 mA
Efficiency	-	Level VI
For Use With/Related Products	Wall Adapter (Multi Plug)	Wall Adapter (Multi Plug)
Form	-	Wall Mount (Class II)
Input Connector	-	NEMA 1-15P, KSC 8305, Multi-Blade
Input Type	-	Fixed Blade, Multi-Blade (Sold Separately)
Operating Temperature	-	40 °C
Operating Temperature	-	0 °C
Output Connector	-	1.35 - 5.5 mm
Output Connector	-	2.1 - 9.5 mm
Output Connector	-	Barrel Plug, Barrel Plug R/A, USB Micro
Output Connector	-	9.5 mm
Output Connector	-	5.5 mm
Polarization	-	Positive Center
Power (Watts)	-	5 - 7.2 W
Region Utilized	-	North America, Europe, International
Size / Dimension	-	43.5 - 59.3 mm
Size / Dimension	-	0.83 - 1.65 "
Size / Dimension	-	1.71 - 2.33 in
Size / Dimension	-	1.1 - 1.61 in
Size / Dimension	-	21 - 42 mm
Size / Dimension	-	28 - 40.9 mm
Standard Number	-	60950-1
Voltage - Input	-	240 - 264 VAC
Voltage - Input	-	90 - 100 VAC
Voltage - Output	-	3.3 - 12 V
Weight	-	0.243 lb
Weight	-	110.22 g

KTPS05 Series

AC/DC WALL MOUNT ADAPTER 9V 5.4W

Part	Weight	Weight	Operating Temperature [Max]	Input Type	Voltage - Output	Efficiency	Input Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Cord Length	Cord Length	Region Utilized	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Form	Output Connector [diameter]	Output Connector [x]	Output Connector	Applications	Polarization	Approval Agency	Power (Watts)	Standard Number	Output Connector [z]	Output Connector [y]
Volgen + Furuno KTPS05-09006U-VI-P2	0.243 lb	110.22 g	40 °C	Fixed Blade	9 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	600 mA	240 VAC	100 VAC	Wall Mount (Class II)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	Positive Center	cUL, UL	5.4 W
Volgen + Furuno KTPS05-12006U-VI-P2	0.243 lb	110.22 g	40 °C	Fixed Blade	12 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	600 mA	240 VAC	100 VAC	Wall Mount (Class II)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	Positive Center	IEC	7.2 W	60950-1
Volgen + Furuno KTPS05-09006U-VI-P1R	0.243 lb	110.22 g	40 °C	Fixed Blade	9 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	600 mA	240 VAC	100 VAC	Wall Mount (Class II)		2.1 mm	Barrel Plug R/A	ITE (Commercial)	Positive Center	cUL, UL	5.4 W		9.5 mm	5.5 mm
Volgen + Furuno KTPS05-05015U-VI-MICROB	0.243 lb	110.22 g	40 °C	Fixed Blade	5 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	1.5 A	240 VAC	100 VAC	Wall Mount (Class II)			USB Micro	ITE (Commercial)		IEC	5 W	60950-1
Volgen + Furuno KTPS05-12006U-VI-P3	0.243 lb	110.22 g	40 °C	Fixed Blade	12 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	600 mA	240 VAC	100 VAC	Wall Mount (Class II)	1.35 mm, 3.5 mm		Barrel Plug	ITE (Commercial)	Positive Center	IEC	5 W	60950-1	9.5 mm
Volgen + Furuno KTPS05-05010U-VI-P1	0.243 lb	110.22 g	40 °C	Fixed Blade	5 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	1 A	240 VAC	100 VAC	Wall Mount (Class II)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	Positive Center	cUL, UL	5 W
Volgen + Furuno KTPS05-0501USB-EU			40 °C	Fixed Blade	5 V	Level VI	KSC 8305	59.3 mm	0.83 in	2.33 in	1.33 in	21 mm	33.8 mm	1.5 m	59 in	Europe	1 A	264 VAC	90 VAC	Wall Mount (Class II)				ITE (Commercial)		IEC	5 W	60950-1
Volgen + Furuno KTPS05-03315U-VI-P2	0.243 lb	110.22 g	40 °C	Fixed Blade	3.3 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	1.5 A	240 VAC	100 VAC	Wall Mount (Class II)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	Positive Center	IEC	5 W	60950-1
Volgen + Furuno KTPS05-06012U-VI-P3	0.243 lb	110.22 g	40 °C	Fixed Blade	6 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	1.2 A	240 VAC	100 VAC	Wall Mount (Class II)	1.35 mm, 3.5 mm		Barrel Plug	ITE (Commercial)	Positive Center	cUL, UL	7.2 W		9.5 mm
Volgen + Furuno KTPS05-0501USB-MULTI			40 °C	Multi-Blade (Sold Separately)	5 V	Level VI	Multi-Blade	43.5 mm	1.13 in	1.71 "	1.61 "	28.6 mm	40.9 mm			International	1 A	264 VAC	90 VAC	Wall Mount (Class II)				ITE (Commercial)		CE, GS, UL	5 W
