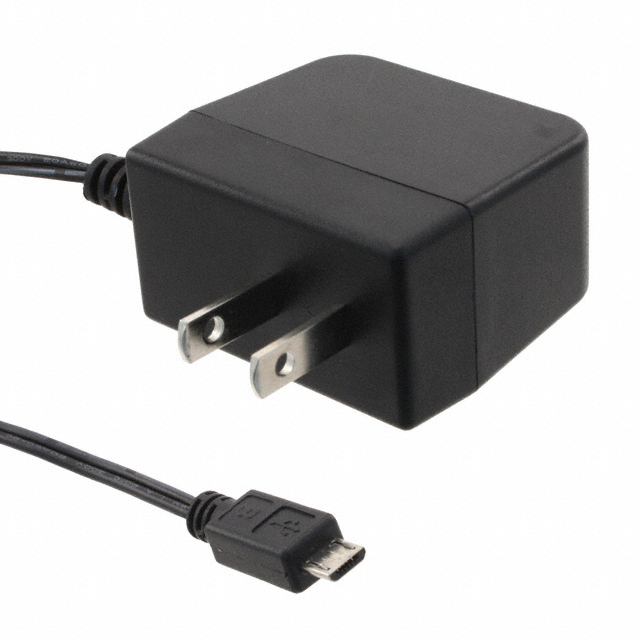

KTPS05-05015U-VI-MICROB

Active

Volgen + Furuno

AC/DC WALL MOUNT ADAPTER 5V 5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KTPS05-05015U-VI-MICROB

Active

Volgen + Furuno

AC/DC WALL MOUNT ADAPTER 5V 5W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.25
		5	$ 5.94
		10	$ 5.78
		25	$ 5.50

Description

General part information

KTPS05 Series

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KTPS05-05015U-VI-MICROB	KTPS05 Series

Accessory Type	-	Input Plug, United Kingdom, Input Plug, Europe
Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	IEC	UL, cUL, IEC, CE, GS
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	1.5 A	1 - 600 mA
Efficiency	Level VI	Level VI
For Use With/Related Products	-	Wall Adapter (Multi Plug)
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	NEMA 1-15P	NEMA 1-15P, KSC 8305, Multi-Blade
Input Type	Fixed Blade	Fixed Blade, Multi-Blade (Sold Separately)
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	USB Micro	Barrel Plug, Barrel Plug R/A, USB Micro
Output Connector	-	1.35 - 5.5 mm
Output Connector	-	2.1 - 9.5 mm
Output Connector	-	9.5 mm
Output Connector	-	5.5 mm
Polarization	-	Positive Center
Power (Watts)	5 W	5 - 7.2 W
Region Utilized	North America	North America, Europe, International
Size / Dimension [x]	56 mm	43.5 - 59.3 mm
Size / Dimension [x]	2.2 in	1.71 - 2.33 in
Size / Dimension [y]	1.1 in	1.1 - 1.61 in
Size / Dimension [y]	28 mm	28 - 40.9 mm
Size / Dimension [z]	1.65 "	0.83 - 1.65 "
Size / Dimension [z]	42 mm	21 - 42 mm
Standard Number	60950-1	60950-1
Voltage - Input [Max]	240 VAC	240 - 264 VAC
Voltage - Input [Min]	100 VAC	90 - 100 VAC
Voltage - Output	5 V	3.3 - 12 V
Weight	0.243 lb	0.243 lb
Weight	110.22 g	110.22 g

KTPS05 Series

AC/DC WALL MOUNT ADAPTER 9V 5.4W

Part	Weight	Weight	Operating Temperature [Max]	Input Type	Voltage - Output	Efficiency	Input Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Cord Length	Cord Length	Region Utilized	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Form	Output Connector [diameter]	Output Connector [x]	Output Connector	Applications	Polarization	Approval Agency	Power (Watts)	Standard Number	Output Connector [z]	Output Connector [y]
Volgen + Furuno KTPS05-09006U-VI-P2	0.243 lb	110.22 g	40 °C	Fixed Blade	9 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	600 mA	240 VAC	100 VAC	Wall Mount (Class II)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	Positive Center	cUL, UL	5.4 W
Volgen + Furuno KTPS05-12006U-VI-P2	0.243 lb	110.22 g	40 °C	Fixed Blade	12 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	600 mA	240 VAC	100 VAC	Wall Mount (Class II)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	Positive Center	IEC	7.2 W	60950-1
Volgen + Furuno KTPS05-09006U-VI-P1R	0.243 lb	110.22 g	40 °C	Fixed Blade	9 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	600 mA	240 VAC	100 VAC	Wall Mount (Class II)		2.1 mm	Barrel Plug R/A	ITE (Commercial)	Positive Center	cUL, UL	5.4 W		9.5 mm	5.5 mm
Volgen + Furuno KTPS05-05015U-VI-MICROB	0.243 lb	110.22 g	40 °C	Fixed Blade	5 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	1.5 A	240 VAC	100 VAC	Wall Mount (Class II)			USB Micro	ITE (Commercial)		IEC	5 W	60950-1
Volgen + Furuno KTPS05-12006U-VI-P3	0.243 lb	110.22 g	40 °C	Fixed Blade	12 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	600 mA	240 VAC	100 VAC	Wall Mount (Class II)	1.35 mm, 3.5 mm		Barrel Plug	ITE (Commercial)	Positive Center	IEC	5 W	60950-1	9.5 mm
Volgen + Furuno KTPS05-05010U-VI-P1	0.243 lb	110.22 g	40 °C	Fixed Blade	5 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	1 A	240 VAC	100 VAC	Wall Mount (Class II)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	Positive Center	cUL, UL	5 W
Volgen + Furuno KTPS05-0501USB-EU			40 °C	Fixed Blade	5 V	Level VI	KSC 8305	59.3 mm	0.83 in	2.33 in	1.33 in	21 mm	33.8 mm	1.5 m	59 in	Europe	1 A	264 VAC	90 VAC	Wall Mount (Class II)				ITE (Commercial)		IEC	5 W	60950-1
Volgen + Furuno KTPS05-03315U-VI-P2	0.243 lb	110.22 g	40 °C	Fixed Blade	3.3 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	1.5 A	240 VAC	100 VAC	Wall Mount (Class II)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	Positive Center	IEC	5 W	60950-1
Volgen + Furuno KTPS05-06012U-VI-P3	0.243 lb	110.22 g	40 °C	Fixed Blade	6 V	Level VI	NEMA 1-15P	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	1.5 m	59 in	North America	1.2 A	240 VAC	100 VAC	Wall Mount (Class II)	1.35 mm, 3.5 mm		Barrel Plug	ITE (Commercial)	Positive Center	cUL, UL	7.2 W		9.5 mm
Volgen + Furuno KTPS05-0501USB-MULTI			40 °C	Multi-Blade (Sold Separately)	5 V	Level VI	Multi-Blade	43.5 mm	1.13 in	1.71 "	1.61 "	28.6 mm	40.9 mm			International	1 A	264 VAC	90 VAC	Wall Mount (Class II)				ITE (Commercial)		CE, GS, UL	5 W
