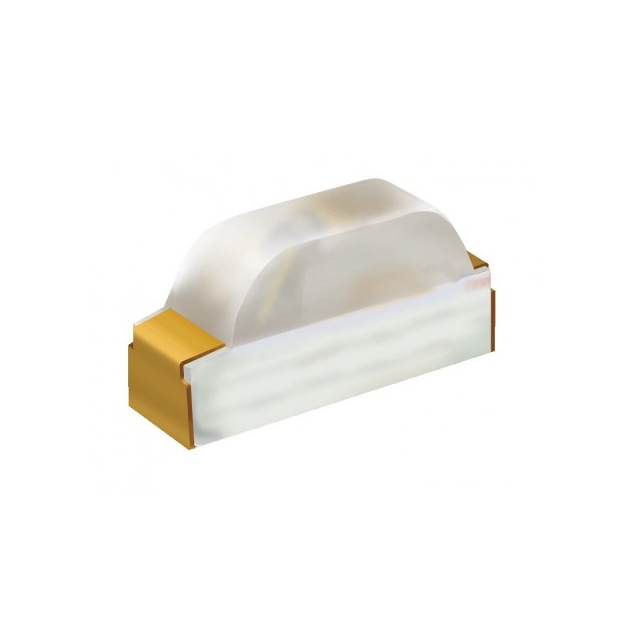

EASV2110YA0

Obsolete

Everlight Electronics Co Ltd

LED YELLOW CLEAR 2SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EASV2110YA0

Obsolete

Everlight Electronics Co Ltd

LED YELLOW CLEAR 2SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EASV2110YA0

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	0.7 mm
Lens Color	Colorless
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	2.1 mm
Size / Dimension [y]	1 mm
Supplier Device Package	2-SMD
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	592 nm
Wavelength - Peak	591 nm

EASV2110 Series

Part	Lens Transparency	Mounting Type	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Style	Configuration	Supplier Device Package	Lens Color	Current - Test	Wavelength - Dominant	Wavelength - Peak	Height (Max) [Max] [z]	Color	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Lens Size [y]	Lens Size [x]
Everlight Electronics Co Ltd EASV2110YA0	Clear	Surface Mount Right Angle	2 V	2-SMD No Lead	Rectangle with Domed Top	Standard	2-SMD	Colorless	20 mA	592 nm	591 nm	0.7 mm	Yellow	130 °	1 mm	2.1 mm
Everlight Electronics Co Ltd EASV2110BA0	Clear	Surface Mount Right Angle	3.5 V	2-SMD No Lead	Rectangle with Domed Top	Standard	2-SMD	Colorless	20 mA	471 nm	468 nm	0.7 mm	Blue	130 °	1 mm	2.1 mm	50 mcd
Everlight Electronics Co Ltd EASV2110BA3	Clear	Surface Mount	3.3 V	2-SMD No Lead	Rectangle with Domed Top	Standard		Clear	20 mA	471 nm	468 nm	0.7 mm	Blue	130 °	1 mm	2.1 mm	79 mcd	0.6 mm	1.7 mm
Everlight Electronics Co Ltd EASV2110YA2	Clear	Surface Mount Right Angle	2.05 V	2-SMD No Lead	Rectangle with Domed Top	Standard	2-SMD	Colorless	20 mA	589 nm	591 nm	0.7 mm	Yellow	130 °	1 mm	2.1 mm	106 mcd
Everlight Electronics Co Ltd EASV2110GA1	Clear	Surface Mount Right Angle	2 V	2-SMD No Lead	Rectangle with Domed Top	Standard	2-SMD	Colorless	20 mA	572 nm	575 nm	0.7 mm	Yellow-Green	130 °	1 mm	2.1 mm	79 mcd
Everlight Electronics Co Ltd EASV2110GA0	Clear	Surface Mount Right Angle	2.05 V	2-SMD No Lead	Rectangle with Domed Top	Standard	2-SMD	Colorless	20 mA	574 nm	575 nm	0.7 mm	Yellow-Green	130 °	1 mm	2.1 mm	22 mcd
Everlight Electronics Co Ltd EASV2110YA1	Clear	Surface Mount Right Angle	2.05 V	2-SMD No Lead	Rectangle with Domed Top	Standard	2-SMD	Colorless	20 mA	589 nm	591 nm	0.7 mm	Yellow	130 °	1 mm	2.1 mm	79 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.64
		10	$ 0.40
		100	$ 0.23
	Digi-Reel®	1	$ 0.64
		10	$ 0.40
		100	$ 0.23
	Tape & Reel (TR)	9000	$ 0.15
		15000	$ 0.14
		30000	$ 0.13
		75000	$ 0.13

Description

General part information

EASV2110 Series

Yellow 592nm LED Indication - Discrete 2V 2-SMD, No Lead
