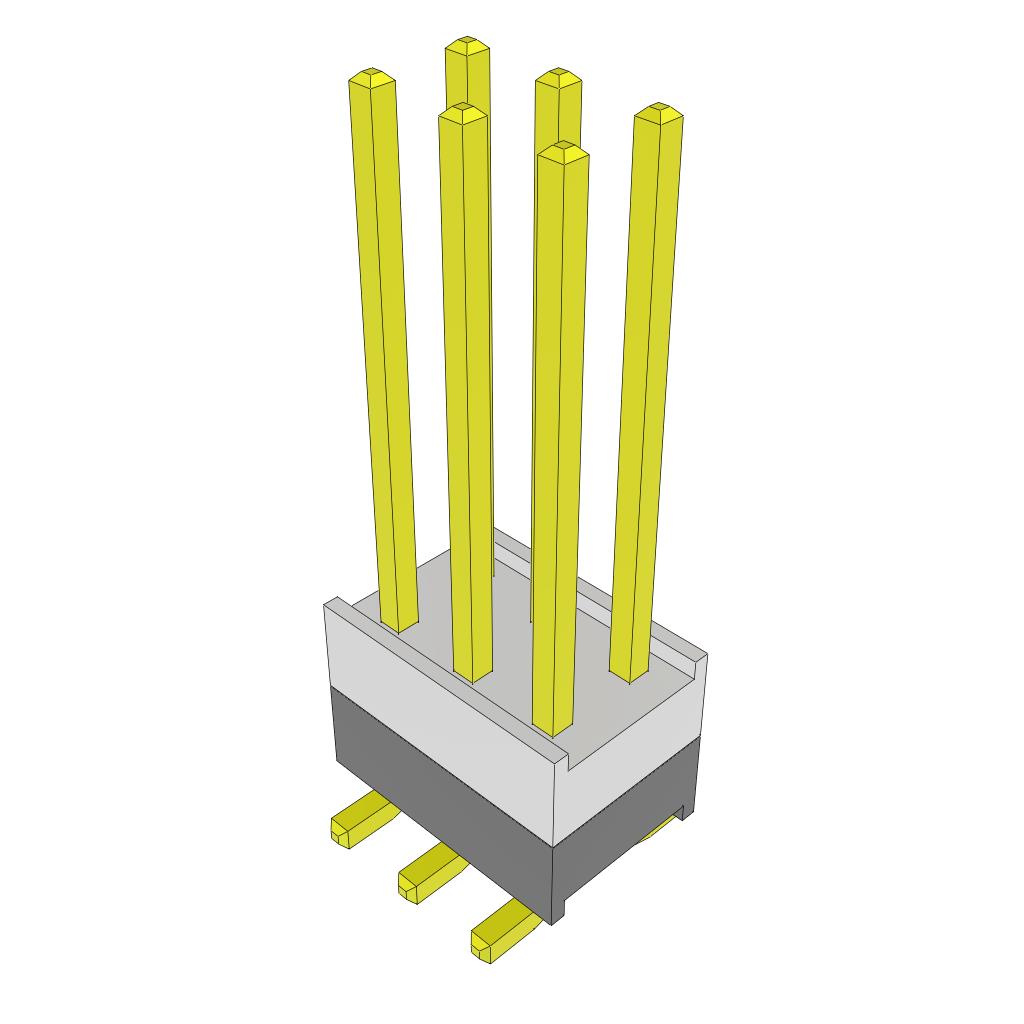

HW-03-10-G-D-251-SM

Active

Samtec Inc.

CONN HDR 6POS 0.1 STACK SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHW Datasheet HW Series Other Related Documents 01 +1

HW-03-10-G-D-251-SM

Active

Samtec Inc.

CONN HDR 6POS 0.1 STACK SMD GOLD

Deep-Dive with AI

DocumentsHW Datasheet HW Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-03-10-G-D-251-SM

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	19.431 mm
Length - Overall Pin	0.765 in
Length - Post (Mating) [x]	13.056 mm
Length - Post (Mating) [x]	0.514 in
Length - Stack Height [x]	0.251 in
Length - Stack Height [x]	6.375 mm
Mounting Type	Surface Mount
Number of Positions	6
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

HW-03-10 Series

Part	Row Spacing [x]	Row Spacing	Length - Overall Pin	Length - Overall Pin	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]	Color	Contact Finish - Post (Mating)	Number of Positions	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. HW-03-10-G-D-251-SM	0.1 in	2.54 mm	19.431 mm	0.765 in	2	Surface Mount	2.54 mm	0.1 in	0.251 in	6.375 mm	Black	Gold	6	Solder	13.056 mm	0.514 in	0.25 Ám	10 Áin
Samtec Inc. HW-03-10-F-D-568-SM-A	0.1 in	2.54 mm	19.431 mm	0.765 in	2	Surface Mount	2.54 mm	0.1 in	0.568 in	14.427 mm	Black	Gold	6	Solder	5.004 mm	0.197 in	0.076 Ám	3 Áin
Samtec Inc. HW-03-10-L-S-495-SM			19.431 mm	0.765 in	1	Surface Mount	2.54 mm	0.1 in	0.495 in	12.573 mm	Black	Gold		Solder	6.858 mm	0.27 in	0.25 Ám	10 Áin
Samtec Inc. HW-03-10-L-D-500-SM	0.1 in	2.54 mm	19.431 mm	0.765 in	2	Surface Mount	2.54 mm	0.1 in	0.5 in	12.7 mm	Black	Gold	6	Solder	6.731 mm	0.265 in	0.25 Ám	10 Áin
Samtec Inc. HW-03-10-T-S-250-SM			19.431 mm	0.765 in	1	Surface Mount	2.54 mm	0.1 in	0.25 in	6.35 mm	Black	Tin		Solder	13.081 mm	0.515 in
Samtec Inc. HW-03-10-G-D-472-SM	0.1 in	2.54 mm	19.431 mm	0.765 in	2	Surface Mount	2.54 mm	0.1 in	0.472 in	11.989 mm	Black	Gold	6	Solder	7.442 mm	0.293 in	0.25 Ám	10 Áin
Samtec Inc. HW-03-10-T-S-590-SM			19.431 mm	0.765 in	1	Surface Mount	2.54 mm	0.1 in	0.59 in	14.986 mm	Black	Tin		Solder	4.445 mm	0.175 in
Samtec Inc. HW-03-10-F-D-500-SM	0.1 in	2.54 mm	19.431 mm	0.765 in	2	Surface Mount	2.54 mm	0.1 in	0.5 in	12.7 mm	Black	Gold	6	Solder	6.731 mm	0.265 in	0.076 Ám	3 Áin
Samtec Inc. HW-03-10-T-D-700-SM	0.1 in	2.54 mm	19.431 mm	0.765 in	2	Surface Mount	2.54 mm	0.1 in	0.7 in	17.78 mm	Black	Tin	6	Solder	1.651 mm	0.065 in
Samtec Inc. HW-03-10-T-D-475-SM	0.1 in	2.54 mm	19.431 mm	0.765 in	2	Surface Mount	2.54 mm	0.1 in			Black	Tin	6	Solder	7.366 mm	0.29 in			0.475 in	12.065 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.72
		50	$ 1.33
		100	$ 1.08
		500	$ 0.92
		1000	$ 0.85
