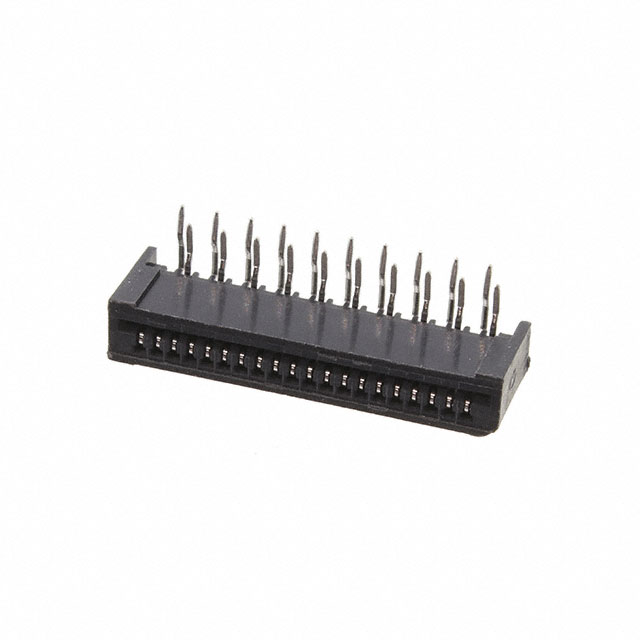

PCB-B-20-SA-25

Active

Adam Tech

CONN FFC FPC TOP 20POS 1.25MM RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

PCB-B-20-SA-25

Active

Adam Tech

CONN FFC FPC TOP 20POS 1.25MM RA

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCB-B-20-SA-25

Cable End Type	Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Features	Low Insertion Force (LIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Housing Color	Black
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Termination	Kinked Pin
Voltage Rating	250 VDC

PCB-B Series

Part	Housing Color	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Cable End Type	Material Flammability Rating	Housing Material	Voltage Rating	Flat Flex Type	Contact Material	Features	Termination	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Contact Finish
Adam Tech PCB-B-18-SA-25	Black	0.3 mm	0.049 in	1.25 mm	18	85 °C	-55 °C	Through Hole Right Angle	Straight	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC	FFC FPC	Phosphor Bronze	Low Insertion Force (LIF)	Kinked Pin	5 mm	0.197 in	Contacts Top	Tin
Adam Tech PCB-B-20-SA-25	Black	0.3 mm	0.049 in	1.25 mm	20	85 °C	-55 °C	Through Hole Right Angle	Straight	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC	FFC FPC	Phosphor Bronze	Low Insertion Force (LIF)	Kinked Pin	5 mm	0.197 in	Contacts Top	Tin
Adam Tech PCB-B-06-SA-25	Black	0.3 mm	0.049 in	1.25 mm	6	85 °C	-55 °C	Through Hole Right Angle	Straight	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC	FFC FPC	Phosphor Bronze	Low Insertion Force (LIF)	Kinked Pin	5 mm	0.197 in	Contacts Top	Tin
Adam Tech PCB-B-20-T-25	Black	0.3 mm	0.049 in	1.25 mm	20	85 °C	-55 °C	Through Hole	Straight	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC	FFC FPC	Phosphor Bronze		Kinked Pin	8 mm	0.315 in	Contacts Vertical - 1 Sided	Tin
Adam Tech PCB-B-24-SA-25	Black	0.3 mm	0.049 in	1.25 mm	24	85 °C	-55 °C	Through Hole Right Angle	Straight	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC	FFC FPC	Phosphor Bronze	Low Insertion Force (LIF)	Kinked Pin	5 mm	0.197 in	Contacts Top	Tin
Adam Tech PCB-B-04-SA-25	Black	0.3 mm	0.049 in	1.25 mm	4	85 °C	-55 °C	Through Hole Right Angle	Straight	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC	FFC FPC	Phosphor Bronze	Low Insertion Force (LIF)	Kinked Pin	5 mm	0.197 in	Contacts Top	Tin
Adam Tech PCB-B-24-T-25	Black	0.3 mm	0.049 in	1.25 mm	24	85 °C	-55 °C	Through Hole	Straight	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC	FFC FPC	Phosphor Bronze		Kinked Pin	8 mm	0.315 in	Contacts Vertical - 1 Sided	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.46
		10	$ 0.35
		21	$ 1.94
		25	$ 0.32
		42	$ 1.84
		50	$ 0.29
		63	$ 1.79
		100	$ 0.27
		105	$ 1.73
		250	$ 0.24
		252	$ 1.63
		500	$ 0.23
		504	$ 1.55
		1000	$ 0.21
		1008	$ 1.47
		2520	$ 1.38

Description

General part information

PCB-B Series

20 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle
