AD-RPTNCPSMAP-1

Active

Amphenol RF

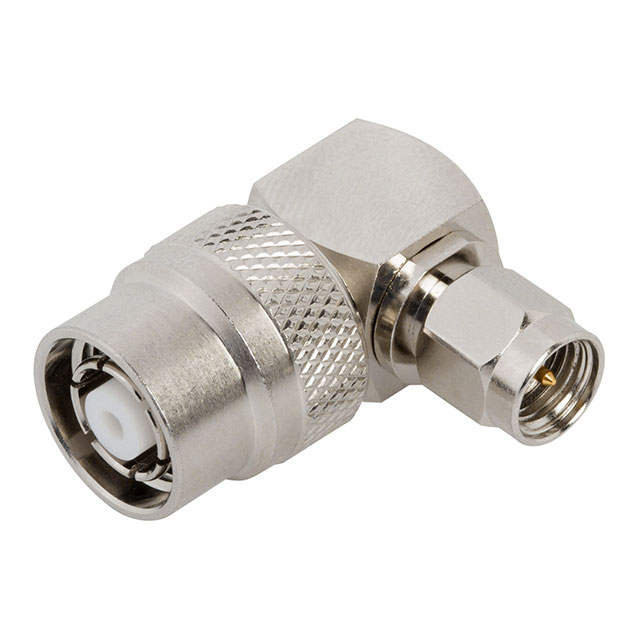

ADAPTER, SMA JACK TO TNC RP PLUG

Search across all available documentation for this part.

Active

Amphenol RF

ADAPTER, SMA JACK TO TNC RP PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	AD-RPTNCPSMAP-1

Adapter Series	SMA to RP-TNC
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, RP-TNC Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Adapter Series	Frequency - Max [Max]	Dielectric Material	Mating Cycles	Mounting Type	Impedance	Center Contact Plating	Adapter Type	Convert From (Adapter End)	Center Contact Material	Body Material	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Body Finish	Style	Center Gender
Amphenol RF AD-RPTNCPSMAP-1	SMA to RP-TNC	11 GHz	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line) Right Angle	50 Ohms	Gold	Plug to Plug	SMA Plug Male Pin	Beryllium Copper Brass	Brass	Female Socket RP-TNC Plug	-65 ░C	165 °C	Between Series	Nickel	Right Angle
Amphenol RF AD-RPTNCJSMAP-1	SMA to RP-TNC	11 GHz	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line) Right Angle	50 Ohms	Gold	Plug to Jack	SMA Plug Male Pin	Brass	Brass	Male Pin RP-TNC Jack	-65 ░C	165 °C	Between Series	Nickel	Right Angle	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To RP-TNC Plug, Female Socket 50 Ohms

Technical documentation and resources

No documents available
