9812 0601000

Active

Belden Inc.

MULTI-PAIR 24COND 28AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 24COND 28AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9812 0601000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.319 "
Jacket (Insulation) Diameter [diameter]	8.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	24
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2960
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	28 AWG

Part	Length	Length	Jacket (Insulation) Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Number of Conductors	Usage	Ratings	Shield Coverage	Features	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Material	Jacket Color	Wire Gauge	Cable Type
Belden Inc. 9812 0601000	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Braid Foil	36 AWG	7	0.889 mm	0.035 in	Copper Tinned	24	Computer	UL Style 2960	90 % 100 %	Drain Wire	-20 C	60 °C	0.319 "	8.1 mm	Polypropylene (PP)	Aluminum Copper Tinned	Chrome	28 AWG	Multi-Pair

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 12.81

General part information

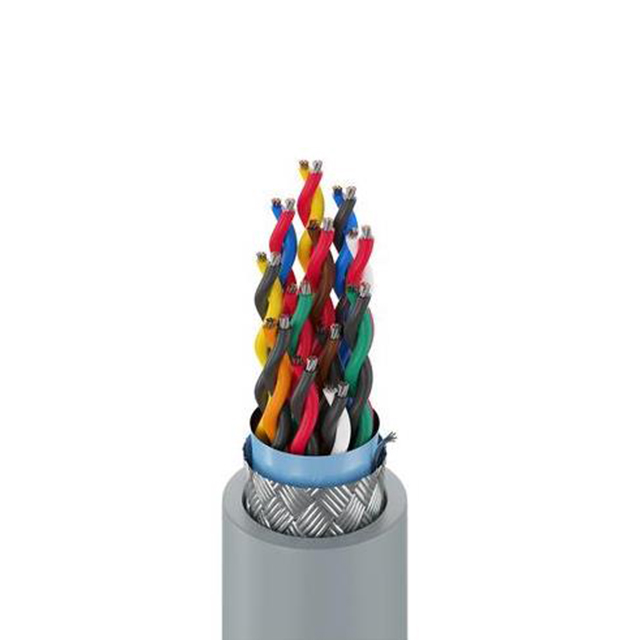

24 (12 Pair Twisted) Conductor Multi-Pair Cable Chrome 28 AWG Foil, Braid 1000.0' (304.8m)
