07190-60

Active

Qualtek

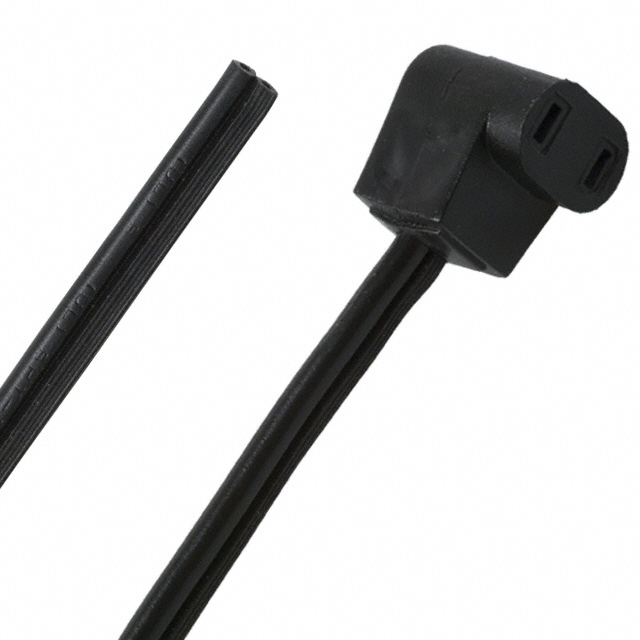

POWER CORD FAN RIGHT ANGLE 60"

Search across all available documentation for this part.

Active

Qualtek

POWER CORD FAN RIGHT ANGLE 60"

Technical Specifications

Parameters and characteristics for this part

Specification	07190-60

1st Connector	Fan Terminal Receptacle 90°, Right Angle
2nd Connector	Open Wires
Approval Agency Marking	UL, cUL
Cord Type	SPT-1
Current Rating (Amps)	10 A
Fits Terminal Size [x]	4.5
Fits Terminal Size [y]	2.5
Length	5 '
Length	1.52 m
Number of Conductors	2
Operating Temperature	105 C
Style	Female Receptacle to Cable
Voltage Rating	125 VDC
Wire Gauge	18 AWG

Part	Voltage Rating	Wire Gauge	Fits Terminal Size [y]	Fits Terminal Size [x]	Current Rating (Amps)	Number of Conductors	Cord Type	Operating Temperature	1st Connector	2nd Connector	Length [x]	Length [x]	Approval Agency Marking	Style	Length	Length
Qualtek 07190-24	125 VDC	18 AWG	2.5	4.5	10 A	2	SPT-1	105 C	Fan Terminal Receptacle 90° Right Angle	Open Wires	609.6 mm	24 in	cUL UL	Female Receptacle to Cable
Qualtek 07190-60	125 VDC	18 AWG	2.5	4.5	10 A	2	SPT-1	105 C	Fan Terminal Receptacle 90° Right Angle	Open Wires			cUL UL	Female Receptacle to Cable	5 '	1.52 m
Qualtek 07190-80	125 VDC	18 AWG	2.5	4.5	10 A	2	SPT-1	105 C	Fan Terminal Receptacle 90° Right Angle	Open Wires			cUL UL	Female Receptacle to Cable	80 "	2.03 m
Qualtek 07190-50	125 VDC	18 AWG	2.5	4.5	10 A	2	SPT-1	105 C	Fan Terminal Receptacle 90° Right Angle	Open Wires			cUL UL	Female Receptacle to Cable	50 in	1270 mm
Qualtek 07190-40	125 VDC	18 AWG	2.5	4.5	10 A	2	SPT-1	105 C	Fan Terminal Receptacle 90° Right Angle	Open Wires			cUL UL	Female Receptacle to Cable	40 in	1.02 m
Qualtek 07190-SP036	125 VDC	18 AWG	2.5	4.5	10 A	2	SPT-1	105 C	Fan Terminal Receptacle 90° Right Angle	NEMA 1-15 Plug			cUL UL	Female Receptacle to Male Plug	36 in	91.44 cm
Qualtek 07190-SP024	125 VDC	18 AWG	2.5	4.5	10 A	2	SPT-1	105 C	Fan Terminal Receptacle 90° Right Angle	NEMA 1-15 Plug	609.6 mm	24 in	cUL UL	Female Receptacle to Male Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Power Cord Fan Terminal Receptacle 90°, Right Angle 60.0" (1.52m) Open Wires
