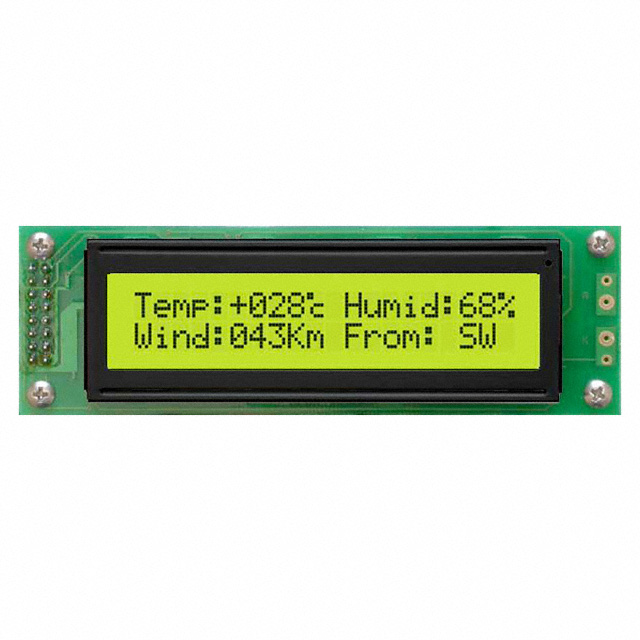

MOP-AL202C-BYFY-25E-3IN

Active

Matrix Orbital

LCD MOD 40DIG 20X2 TRANS YLW/GRN

Search across all available documentation for this part.

Active

Matrix Orbital

LCD MOD 40DIG 20X2 TRANS YLW/GRN

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Area [y]	Viewing Area [x]	Display Type	Background Color	Display Format [x]	Display Format [y]	Number of Characters	Dot Size [custom]	Dot Size [custom]	Interface	Character Format [y]	Character Format [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Display Mode	Character Size [z]	Character Size [y]	Text Color	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]
Matrix Orbital MOP-AL202C-BYFY-25E-3IN	18.6 mm	83 mm	STN - Super-Twisted Nematic	Green	20	2	40	0.65 mm	0.6 mm	Parallel	8 Dots	5 Dots	4.5 V	5.5 V	-20 C	70 °C	Transflective	5.55 mm	3.2 mm	Gray	37 mm	116 mm	14.5 mm
Matrix Orbital MOP-AL202C-BTTY-25E-3IN	11.5 mm	73.5 mm	Alphanumeric	Black	20	2	40			I2C RS-232 TTL	8 Dots	5 Dots			-20 C	70 °C		5.55 mm	3.2 mm	Yellow/Green	37 mm	116 mm	14.5 mm
Matrix Orbital MOP-AL202C-BFTW-25E-3IN	11.5 mm	73.5 mm	Alphanumeric	Black	20	2	40			I2C RS-232 TTL	8 Dots	5 Dots			-20 C	70 °C		5.55 mm	3.2 mm	White	37 mm	116 mm	14.5 mm
Matrix Orbital MOP-AL202C-BBTR-25E-3IN	11.5 mm	73.5 mm	Alphanumeric	Black	20	2	40			I2C RS-232 TTL	8 Dots	5 Dots			-20 C	70 °C		5.55 mm	3.2 mm	Red	37 mm	116 mm	14.5 mm
Matrix Orbital MOP-AL202C-BFTA-25E-3IN	11.5 mm	73.5 mm	Alphanumeric	Black	20	2	40			I2C RS-232 TTL	8 Dots	5 Dots			-20 C	70 °C		5.55 mm	3.2 mm	Amber	37 mm	116 mm	14.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 116.00mm x 37.00mm x 14.50mm
