US1NDFQ-13
ActiveDiodes Inc
1.0A SURFACE-MOUNT ULTRA-FAST RECTIFIER
Deep-Dive with AI
Search across all available documentation for this part.
US1NDFQ-13
ActiveDiodes Inc
1.0A SURFACE-MOUNT ULTRA-FAST RECTIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | US1NDFQ-13 |
|---|---|
| Capacitance @ Vr, F | 5 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |

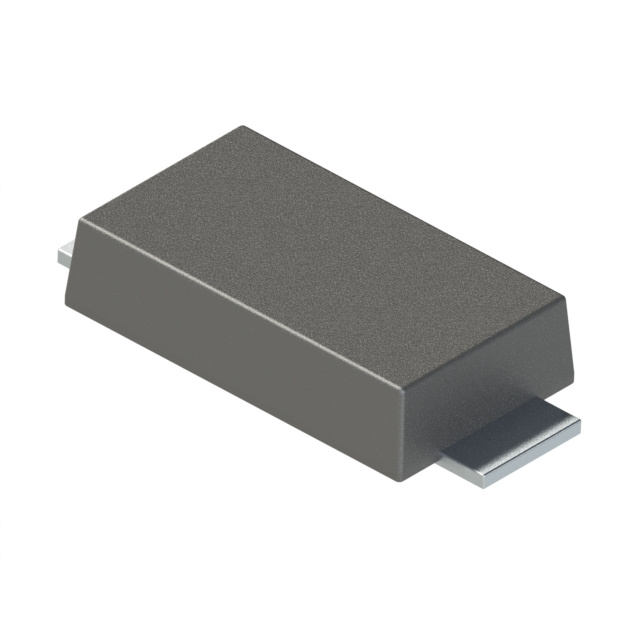

| Package / Case | 2-SMD, Flat Leads |
| Qualification | AEC-Q101 |
| Reverse Recovery Time (trr) | 80 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | D-Flat |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.10 | |
| 6000 | $ 0.09 | |||
| 9000 | $ 0.09 | |||
| 15000 | $ 0.08 | |||
| 21000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
Description
General part information
US1NDFQ Series
The US1NDFQ is a rectifier packaged in the low-profile D-FLAT package. Providing ultra-fast recovery time for high efficiency, this device is ideal for use in general rectification applications such as: flat panel displays, switching power supplies/chargers, LED lighting, and freewheeling diodes.
