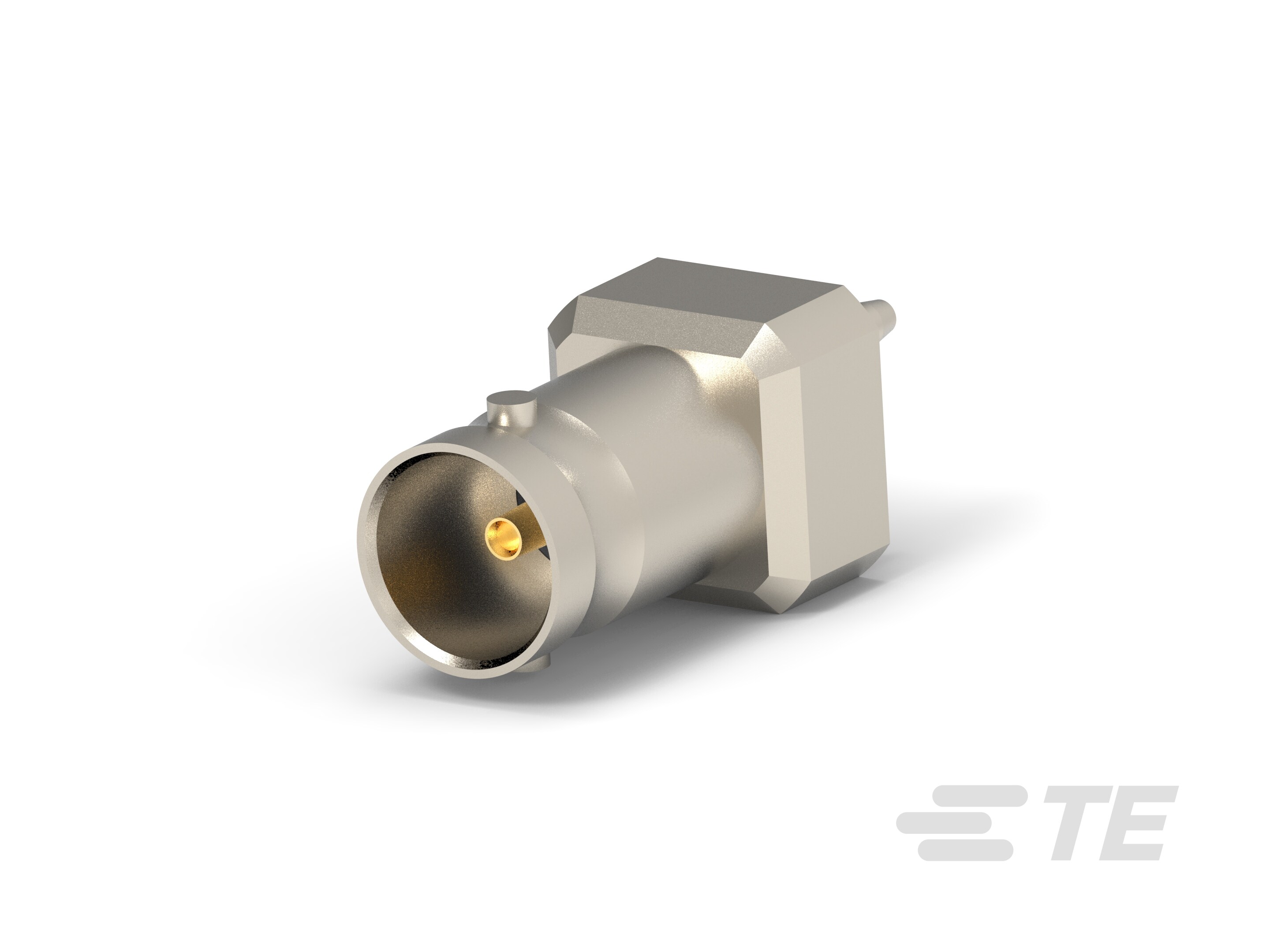

CONN BNC JACK STR 75 OHM PCB
2016080-2
ObsoleteTE Connectivity AMP Connectors
CONN BNC JACK STR 75 OHM PCB
Description
General part information
2016080 Series
BNC Connector, Jack, 75 ohm, Bayonet, 4 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Panel Mount, -55 – 85 °C [-67 – 185 °F], Brass, Nickel
Technical Specifications
Parameters and characteristics for this part
| Specification | 2016080-2 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Press-Fit |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 2 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Press-Fit |
| Voltage Rating | 500 V |
