Cable Assemblies
A9BAG-1304F
ActiveTE Connectivity Raychem Cable Protection
FLEX CABLE - AFF13G/AF13/AFE13T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A9BAG-1304F |
|---|---|
| Contact Termination | Receptacle to Solder Tab |
| Length [x] | 101.6 mm |
| Length [x] | 4 " |
| Number of Positions | 13 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.30 | |
| 10 | $ 7.70 | |||
| 25 | $ 7.15 | |||
| 50 | $ 6.76 | |||
| 100 | $ 6.39 | |||
| 250 | $ 5.93 | |||
| 500 | $ 5.61 | |||
| 1000 | $ 5.30 | |||
Description
General part information
A9BAG Series

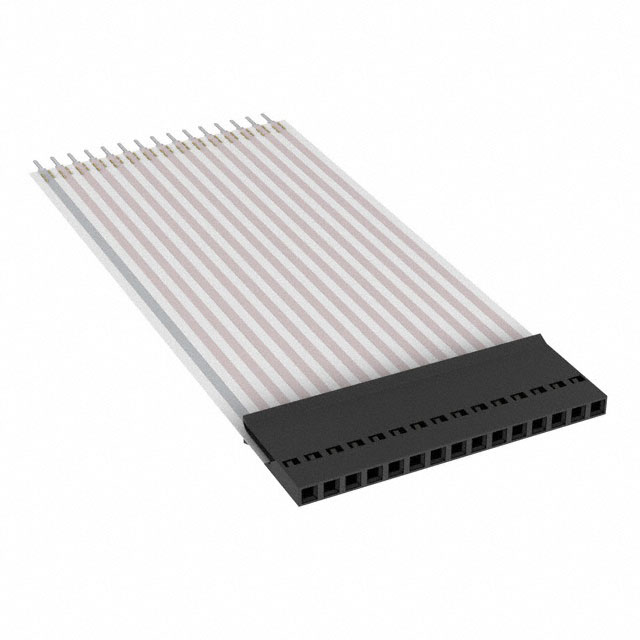

13 Position Flat Flex Cable Assembly Receptacle to Solder Tab 4.00" (101.60mm)
