8720 0602000

Active

Belden Inc.

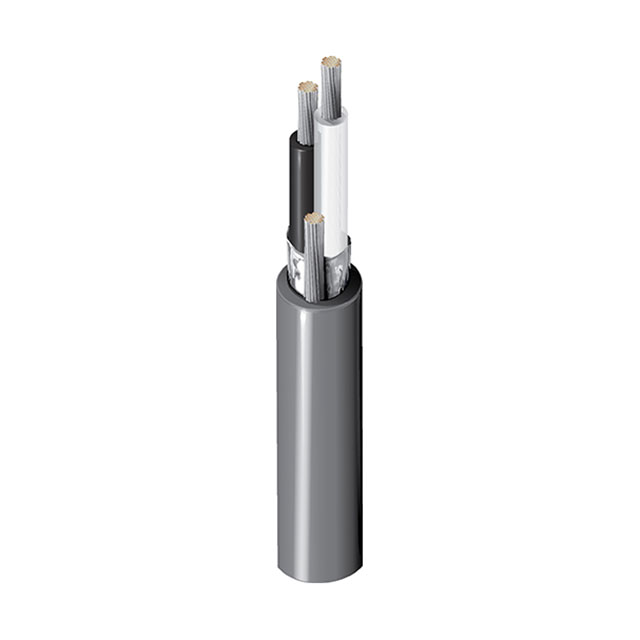

CABLE 2COND 14AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 14AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	8720 0602000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.355 "
Jacket (Insulation) Diameter [diameter]	9.02 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	609.6 m
Length [x]	2000 ft
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 20253
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	13.5 AWG

Part	Shield Material	Ratings	Conductor Insulation	Shield Type	Features	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Cable Type	Number of Conductors	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Conductor Material
Belden Inc. 8720 0602000	Aluminum	UL Style 20253	Polyethylene (PE)	Foil	Drain Wire	Chrome	-20 C	80 C	100 %	Multi-Conductor	2	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in	13.5 AWG	609.6 m	2000 ft	0.355 "	9.02 mm	Audio Control Instrumentation	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2000	$ 3.20

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 14 AWG Foil 2000.0' (609.6m)
