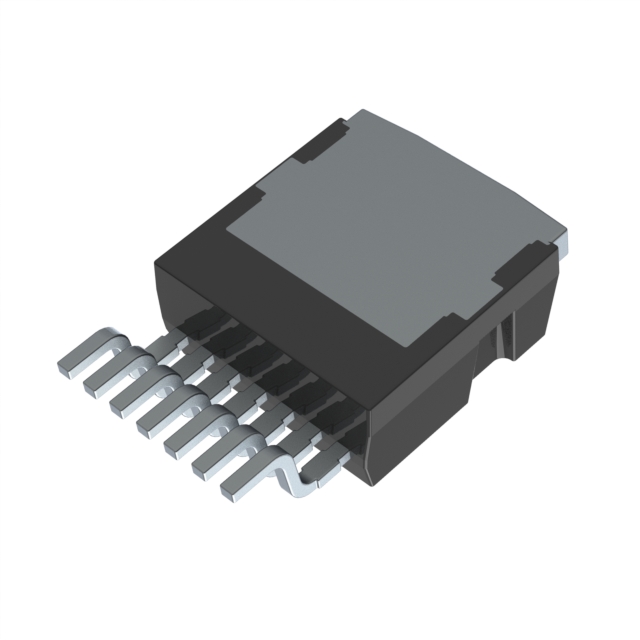

C3M0065090J

Active

Wolfspeed

SICFET N-CH 900V 35A D2PAK-7

Search across all available documentation for this part.

Active

Wolfspeed

SICFET N-CH 900V 35A D2PAK-7

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C3M0065090J	C3M0065090 Series

Current - Continuous Drain (Id) @ 25°C	35 A	35 - 36 A
Drain to Source Voltage (Vdss)	900 V	900 V
Drive Voltage (Max Rds On, Min Rds On)	15 V	15 V
FET Type	N-Channel	N-Channel
Gate Charge (Qg) (Max) @ Vgs	30 nC	30 - 30.4 nC
Input Capacitance (Ciss) (Max) @ Vds	660 pF	660 pF
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA, TO-247-3
Power Dissipation (Max)	-	125 W
Power Dissipation (Max) [Max]	113 W	113 W
Rds On (Max) @ Id, Vgs	78 mOhm	78 mOhm
Supplier Device Package	TO-263-7	TO-263-7, TO-247-3
Vgs (Max) [Max]	19 V	18 - 19 V
Vgs (Max) [Min]	-8 V	-8 V
Vgs(th) (Max) @ Id	3.5 V	3.5 V

SICFET N-CH 900V 35A D2PAK-7

Part	Vgs (Max) [Min]	Vgs (Max) [Max]	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Supplier Device Package	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	FET Type	Mounting Type	Power Dissipation (Max)
Wolfspeed C3M0065090J-TR	-8 V	19 V	15 V	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA	-55 °C	150 °C	900 V	TO-263-7	3.5 V	660 pF	35 A	113 W	30 nC	78 mOhm	N-Channel	Surface Mount
Wolfspeed C3M0065090D	-8 V	18 V	15 V	TO-247-3	-55 °C	150 °C	900 V	TO-247-3	3.5 V	660 pF	36 A		30.4 nC	78 mOhm	N-Channel	Through Hole	125 W
Wolfspeed C3M0065090J	-8 V	19 V	15 V	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA	-55 °C	150 °C	900 V	TO-263-7	3.5 V	660 pF	35 A	113 W	30 nC	78 mOhm	N-Channel	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 900 V 35A (Tc) 113W (Tc) Surface Mount TO-263-7
