M2044LL1A01

Obsolete

NKK Switches

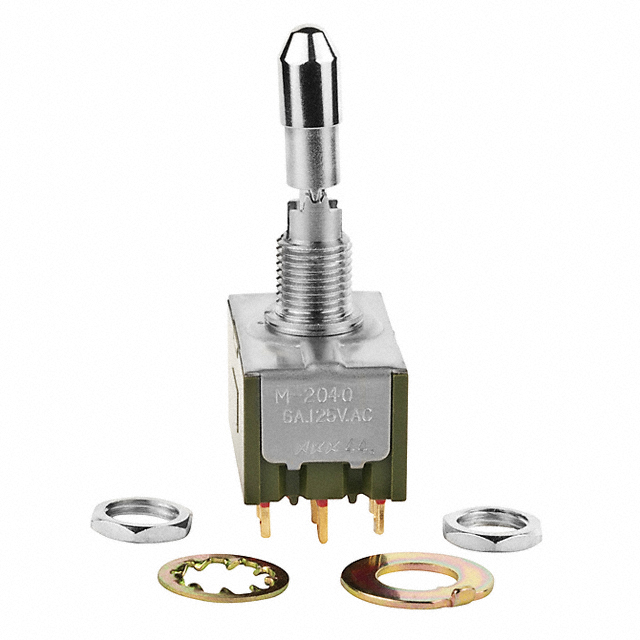

SWITCH TOGGLE DP3T 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DP3T 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2044LL1A01

Actuator Length [x]	16.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Locking Lever
Bushing Thread	1/4-40
Circuit	DP3T
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Panel Cutout Dimensions [diameter]	Circuit	Electrical Life	Actuator Length [x]	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Actuator Material	Illumination	Actuator Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Switch Function	Bushing Thread
NKK Switches M2044LL1A01	6.5 mm	DP3T	25000 Steps	16.5 mm	30 V	3 A 6 A	Solder Lug	Brass Chrome Plated	Non-Illuminated	Locking Lever	Jumper needed to achieve triple throw	-30 ░C	85 °C	125 V	On-On-On	1/4-40
NKK Switches M2044LL1W01-C	6.5 mm	DP3T	25000 Steps	16.5 mm	30 V	3 A 6 A	Solder Lug	Brass Chrome Plated	Non-Illuminated	Locking Lever	Jumper needed to achieve triple throw	-30 ░C	85 °C	125 V	On-On-On	1/4-40
NKK Switches M2044LL1W01	6.5 mm	DP3T	25000 Steps	16.5 mm	30 V	3 A 6 A	Solder Lug	Brass Chrome Plated	Non-Illuminated	Locking Lever	Jumper needed to achieve triple throw	-30 ░C	85 °C	125 V	On-On-On	1/4-40
