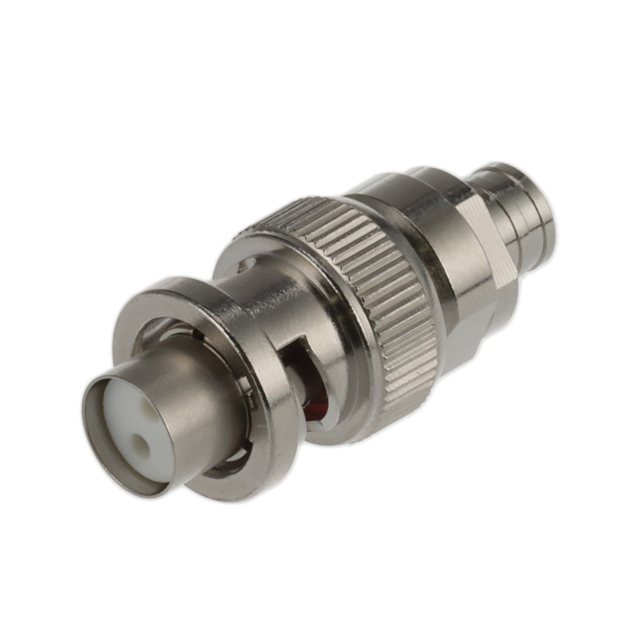

162108B

Active

Amphenol RF

CONN TWINAX PLUG STR SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN TWINAX PLUG STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	162108B

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-108A
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC, Twinaxial
Connector Type	Male Pin, Female Socket, Plug
Contact Termination	Solder
Dielectric Material	Polybutylene Terephthalate (PBT)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	78 Ohms
Includes	Contact Assembly, 1 Insulator, 1 Ferrule, 1 Connector
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mounting Type	Body Finish	Frequency - Max [Max]	Cable Group	Ingress Protection	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Fastening Type	Center Contact Plating	Shield Termination	Center Contact Material	Mating Cycles	Dielectric Material	Impedance	Voltage Rating	Contact Termination	Housing Color	Connector Style	Connector Type	Number of Ports
Amphenol RF 162108B	Free Hanging (In-Line)	Nickel	4 GHz	RG-108A	Weatherproof	Brass	85 °C	-55 °C	1 Connector 1 Ferrule 1 Insulator Contact Assembly	Bayonet Lock	Gold	Crimp	Brass Phosphor Bronze	500	Polybutylene Terephthalate (PBT)	78 Ohms	500 V	Solder	Silver	BNC Twinaxial	Female Socket Male Pin Plug	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC, Twinaxial Connector Plug, Female Socket and Male Pin 78 Ohms Free Hanging (In-Line) Solder
