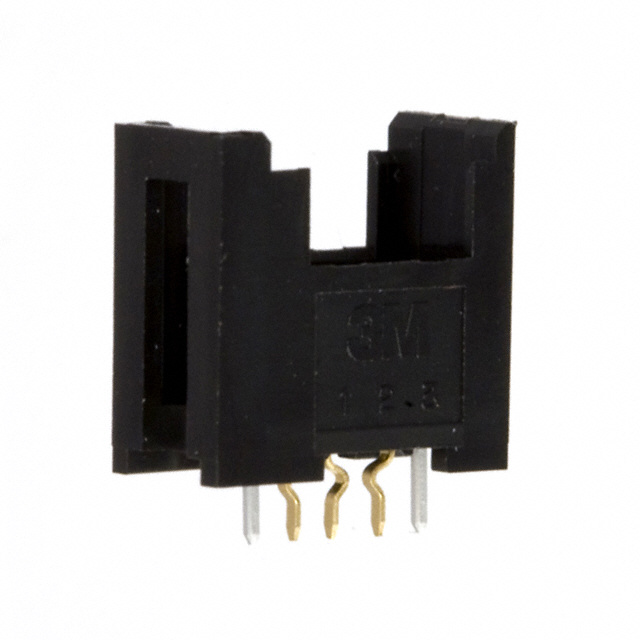

37203-62B3-003PL

Active

3M (TC)

PCB RECEPTACLE, WIRE-TO-BOARD, 2 MM, 1 ROWS, 3 CONTACTS, THROUGH HOLE MOUNT

Search across all available documentation for this part.

Active

3M (TC)

PCB RECEPTACLE, WIRE-TO-BOARD, 2 MM, 1 ROWS, 3 CONTACTS, THROUGH HOLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	37203-62B3-003PL

Applications	Automotive, Medical, General Purpose, Lighting, Industrial
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	13 mm
Insulation Height	0.512 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	32 V

Part	Features	Fastening Type	Voltage Rating	Number of Rows	Mounting Type	Applications	Contact Finish - Post	Material Flammability Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Termination	Insulation Material	Insulation Height	Insulation Height	Current Rating (Amps)	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Style	Contact Length - Post	Contact Length - Post	Contact Type	Contact Finish Thickness - Post	Contact Material	Insulation Color
3M (TC) 37203-62B3-003PL	Board Guide	Latch Holder	32 V	1	Through Hole	Automotive General Purpose Industrial Lighting Medical	Gold	UL94 V-0	Gold	0.203 Ám	8 Áin	Square	Kinked Pin Solder	Liquid Crystal Polymer (LCP)	13 mm	0.512 in	3 A	Receptacle	0.079 in	2 mm	All	Board to Cable/Wire	0.102 in	2.6 mm	Female Socket	Flash	Copper Alloy	Black
3M (TC) 37203-12E0-003 PL		Latch Holder	32 V	1	Surface Mount Right Angle	Automotive General Purpose Industrial Lighting Medical	Gold	UL94 V-0	Gold	0.203 Ám	8 Áin	Square	Solder	Liquid Crystal Polymer (LCP)	7.7 mm	0.303 in	3 A	Receptacle	0.079 in	2 mm	All	Board to Cable/Wire			Female Socket	Flash	Copper Alloy	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
