HW-14-08-T-S-375-075

Active

Samtec Inc.

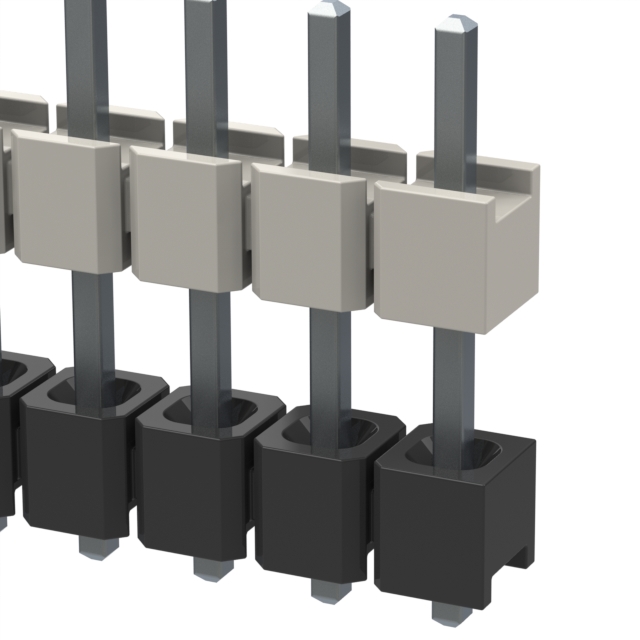

CONN HDR 14POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-14-08-T-S-375-075

Active

Samtec Inc.

CONN HDR 14POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-14-08-T-S-375-075

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin	0.53 in
Length - Overall Pin	13.462 mm
Length - Stack Height [x]	0.375 in
Length - Stack Height [x]	9.525 mm
Length - Tail	1.905 mm
Length - Tail	0.075 in
Mounting Type	Through Hole
Number of Positions	14
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-14-08 Series

Part	Row Spacing [x]	Row Spacing	Mounting Type	Length - Overall Pin	Length - Overall Pin	Number of Rows	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Color	Pitch [x]	Pitch [x]	Number of Positions	Length - Tail	Length - Tail	Length - Tail [x]	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail [x]
Samtec Inc. HW-14-08-G-D-250-SM	0.1 in	2.54 mm	Surface Mount	11.811 mm	0.465 in	2	Solder	5.791 mm	0.215 in	0.25 in	6.35 mm	0.25 Ám	10 Áin	Gold	Black	2.54 mm	0.1 in	28
Samtec Inc. HW-14-08-T-S-375-075			Through Hole	13.462 mm	0.53 in	1	Solder			0.375 in	9.525 mm			Tin	Black	2.54 mm	0.1 in	14	1.905 mm	0.075 in
Samtec Inc. HW-14-08-S-D-345-SM	0.1 in	2.54 mm	Surface Mount	11.811 mm	0.465 in	2	Solder	3.048 mm	0.12 in			0.76 µm	30 µin	Gold	Black	2.54 mm	0.1 in	28
Samtec Inc. HW-14-08-F-D-295-SM-LC-TR	0.1 in	2.54 mm	Surface Mount	11.811 mm	0.465 in	2	Solder	4.318 mm	0.17 in	0.295 in	7.493 mm	0.076 Ám	3 Áin	Gold	Black	2.54 mm	0.1 in	28
Samtec Inc. HW-14-08-L-D-250-SM	0.1 in	2.54 mm	Surface Mount	11.811 mm	0.465 in	2	Solder	5.791 mm	0.215 in	0.25 in	6.35 mm	0.25 Ám	10 Áin	Gold	Black	2.54 mm	0.1 in	28
Samtec Inc. HW-14-08-G-D-465-SM	0.1 in	2.54 mm	Surface Mount	11.811 mm	0.465 in	2	Solder			0.465 in	11.811 mm	0.25 Ám	10 Áin	Gold	Black	2.54 mm	0.1 in	28
Samtec Inc. HW-14-08-G-D-300-055	0.1 in	2.54 mm	Through Hole	13.462 mm	0.53 in	2	Solder	4.445 mm	0.175 in	0.3 in	7.62 mm	0.25 Ám	10 Áin	Gold	Black	2.54 mm	0.1 in	28	1.4 mm		0.055 "
Samtec Inc. HW-14-08-LM-S-325-SM			Surface Mount	11.811 mm	0.465 in	1	Solder	3.556 mm	0.14 in			0.25 Ám	10 Áin	Gold	Black	2.54 mm	0.1 in	14				8.255 mm	0.325 in
Samtec Inc. HW-14-08-T-S-315-SM			Surface Mount	11.811 mm	0.465 in	1	Solder	3.81 mm	0.15 in	0.315 in	8 mm			Tin	Black	2.54 mm	0.1 in	14
Samtec Inc. HW-14-08-G-S-375-090			Through Hole	13.462 mm	0.53 in	1	Solder	1.651 mm	0.065 in	0.375 in	9.525 mm	0.25 Ám	10 Áin	Gold	Black	2.54 mm	0.1 in	14			0.09 in			2.286 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.97

Description

General part information

HW-14-08 Series

14 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
