Q-2I02V0005072i

Active

Amphenol Custom Cable

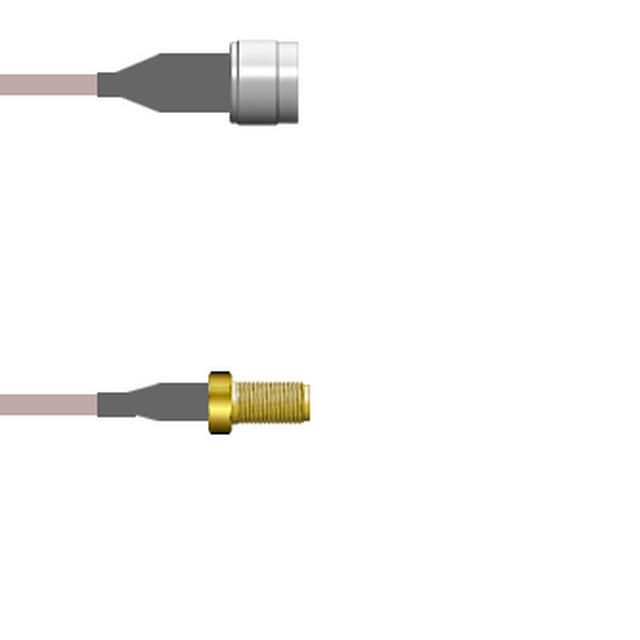

CBL ASSY SMA-NTYPE JACK-PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I02V0005072i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-PLUG 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I02V0005072i

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2I02V0 Series

Part	2nd Contact Gender	Features	Color	1st Contact Gender	Overall Impedance	Cable Type	Style	2nd Connector Mounting Type	1st Connector Mounting Type	Length	Length	Length	1st Connector	2nd Connector	Connector Impedance	Cable Impedance	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-2I02V0005048i	Male	Shielded	Black	Female	50 Ohms	RG-316	SMA to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	1200 mm	4 ft	48 in	SMA Jack	N-Type Plug	50 Ohms	50 Ohms	3 GHz
Amphenol Custom Cable Q-2I02V0005006i	Male	Shielded	Copper	Female	50 Ohms	RG-316	SMA to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	152.4 mm		6 in	SMA Jack	N-Type Plug	50 Ohms	50 Ohms	3 GHz
Amphenol Custom Cable Q-2I02V0003072i	Male	Shielded	Black	Female	50 Ohms	RG-174	SMA to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	1.8 m	6 ft	72 in	SMA Jack	N-Type Plug	50 Ohms	50 Ohms	3 GHz
Amphenol Custom Cable Q-2I02V0005024i	Male	Shielded	Copper	Female	50 Ohms	RG-316	SMA to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	609.6 mm		24 "	SMA Jack	N-Type Plug	50 Ohms	50 Ohms	3 GHz
Amphenol Custom Cable Q-2I02V00030.5M	Male	Shielded	Black	Female	50 Ohms	RG-174	SMA to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	50 cm		19.69 "	SMA Jack	N-Type Plug	50 Ohms	50 Ohms	3 GHz
Amphenol Custom Cable Q-2I02V0003018i	Male	Shielded	Black	Female	50 Ohms	RG-174	SMA to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)				SMA Jack	N-Type Plug	50 Ohms	50 Ohms	3 GHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2I02V0005072i	Male	Shielded	Black	Female	50 Ohms	RG-316	SMA to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	1.8 m	6 ft	72 in	SMA Jack	N-Type Plug	50 Ohms	50 Ohms	3 GHz
Amphenol Custom Cable Q-2I02V0005108i	Male	Shielded	Black	Female	50 Ohms	RG-316	SMA to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	2.7 m	9 ft	108 in	SMA Jack	N-Type Plug	50 Ohms	50 Ohms	3 GHz
Amphenol Custom Cable Q-2I02V00032.5M	Male	Shielded	Black	Female	50 Ohms	RG-174	SMA to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	2.5 m	8.2 '	98.4 in	SMA Jack	N-Type Plug	50 Ohms	50 Ohms	3 GHz
Amphenol Custom Cable Q-2I02V0003024i	Male	Shielded	Black	Female	50 Ohms	RG-174	SMA to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	609.6 mm		24 "	SMA Jack	N-Type Plug	50 Ohms	50 Ohms	3 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 126.56
		25	$ 124.07
		50	$ 121.59
		100	$ 119.10
		250	$ 116.62

Description

General part information

Q-2I02V0 Series

Cable Assembly Coaxial SMA to N-Type RG-316 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
