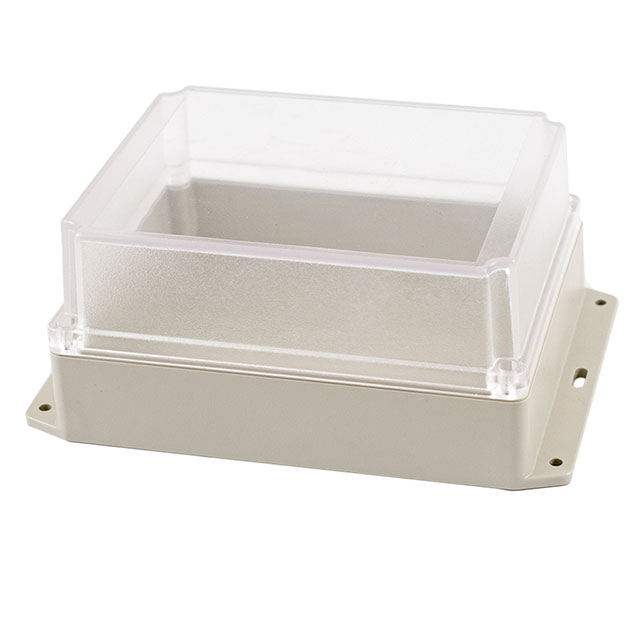

RP1375BFC

Active

ENCLOSURES, BOXES, & CASES ABS WATERTIGHT CLEAR LID

Boxes, Enclosures, Racks

Active

ENCLOSURES, BOXES, & CASES ABS WATERTIGHT CLEAR LID

Technical Specifications

Parameters and characteristics for this part

Specification	RP1375BFC

Area (L x W)	50.8 in²
Color	Clear Cover/Door, Gray
Container Type	Box
Design	Cover Included
Height	3.54 in
Material	ABS
Material Flammability Rating	UL94 HB
Size / Dimension Length	8.66 in
Size / Dimension Width	5.87 in
Thickness	0.08 in

Part	Area (L x W)	Container Type	Size / Dimension Width	Size / Dimension Length	Design	Thickness	Color	Material Flammability Rating	Height	Material	Features
Hammond Manufacturing RP1170BFC	26.7 in²	Box	3.47 in	7.68 in	Cover Included	0.08 in	Clear Cover/Door Off White	UL94 V-2	2.17 in	ABS
Hammond Manufacturing RP1380	42.4 in²	Box	5.787 in	7.35 in	Cover Included	0.118 in	Off White	UL94 HB	4.331 in	Polycarbonate	PCB Supports Watertight
Hammond Manufacturing RP1140C	16.7 in²	Box	3.39 in	4.94 in	Cover Included	0.08 in	Clear Cover/Door Off White	UL94 V-2	2.76 in	Polycarbonate
Hammond Manufacturing RP1210BF	29.1 in²	Box	4.24 in	6.89 in	Cover Included	0.08 in	Off White	UL94 V-2	2.56 in	Polycarbonate Polycarbonate (PC)
Hammond Manufacturing RP1210BFC	29.1 in²	Box	4.24 in	6.89 in	Cover Included	0.08 in	Clear Cover/Door Off White	UL94 V-2	2.56 in	Polycarbonate
Hammond Manufacturing RP1465	56.3 in²	Box	6.495 in	8.661 in	Cover Included	0.138 in	Gray	UL94 HB	3.343 in	ABS	PCB Supports Watertight
Hammond Manufacturing RP1375BFC	50.8 in²	Box	5.87 in	8.66 in	Cover Included	0.08 in	Clear Cover/Door Gray	UL94 HB	3.54 in	ABS
Hammond Manufacturing RP1170C	22.3 in²	Box	3.41 in	6.54 in	Cover Included	0.08 in	Clear Cover/Door Off White	UL94 V-2	1.57 in	ABS
Hammond Manufacturing RP1015C	6.14 in²	Box	2.38 in	2.58 in	Cover Included	0.08 in	Clear Cover/Door Gray	UL94 HB	1.1 in	ABS Polycarbonate
Hammond Manufacturing RP1630	80.3 in²	Box	8.03 in	10 in	Cover Included	0.08 in	Off White	UL94 V-2	5.12 in	Polycarbonate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Bag	1	$ 26.71	<6d
		5	$ 22.84
Mouser	N/A	1	$ 25.70	30d+
		5	$ 22.42
		10	$ 21.09
		25	$ 20.19
		50	$ 19.64
		100	$ 19.24
		250	$ 18.94
		500	$ 18.75
RS Group	Minimum Package Quantity (MPQ)	1	$ 30.58	1w

3D models and CAD resources for this part

General part information

Box ABS Gray, Clear Cover/Door Cover Included 8.660" L x 5.870" W (219.96mm x 149.10mm) X 3.540" (89.92mm)
