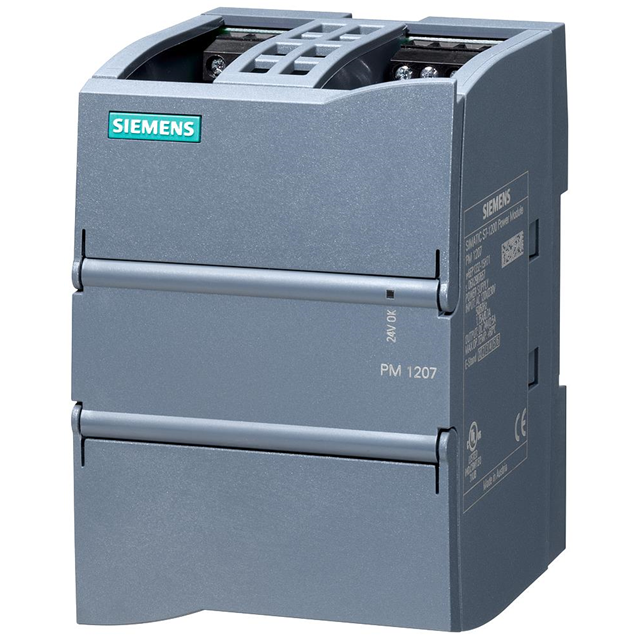

6EP13321SH71

Active

Siemens

AC/DC CONVERTER 24V 60W

Search across all available documentation for this part.

Active

Siemens

AC/DC CONVERTER 24V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP13321SH71

Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE, cURus, cUL, CSA, CB, cULus, UL
Current - Output 1	2.5 A
Efficiency	83 %
Features	Adjustable Output, Universal Input, IP20
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	75 mm
Size / Dimension [x]	2.95 in
Size / Dimension [y]	70 mm
Size / Dimension [y]	2.76 in
Size / Dimension [z]	3.94 in
Size / Dimension [z]	100 mm
Standard Number	60950-1, UL 508
Type	Enclosed
Voltage - Input [Max]	176 VAC, 264 VAC
Voltage - Input [Min]	85 VAC, 132 VAC
Voltage - Output 1	24 V

Part	Minimum Load Required	Number of Outputs	Features	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Standard Number	Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Applications	Current - Output 1	Efficiency	Mounting Type	Input Type	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]
Siemens 6EP13321SH71		1	Adjustable Output IP20 Universal Input	85 VAC 132 VAC	176 VAC 264 VAC	70 mm	3.94 in	75 mm	100 mm	2.95 in	2.76 in	24 V	60950-1 UL 508	Enclosed	60 °C	0 °C	CB CE CSA cUL cULus cURus UL	Hazardous Locations Industrial ITE (Commercial)	2.5 A	83 %	Chassis Mount
Siemens 6EP13321SH43		1	Adjustable Output IP20			72 mm	3.54 "	52.5 mm	90 mm	2.07 "	2.83 in	24 V	60950-1 UL 508		70 °C	-20 C	CB cCSAus CE cULus cURus	Industrial ITE (Commercial)		88 %		AC or DC	110 V	85 VAC	264 VAC	2.5 A	300 V
