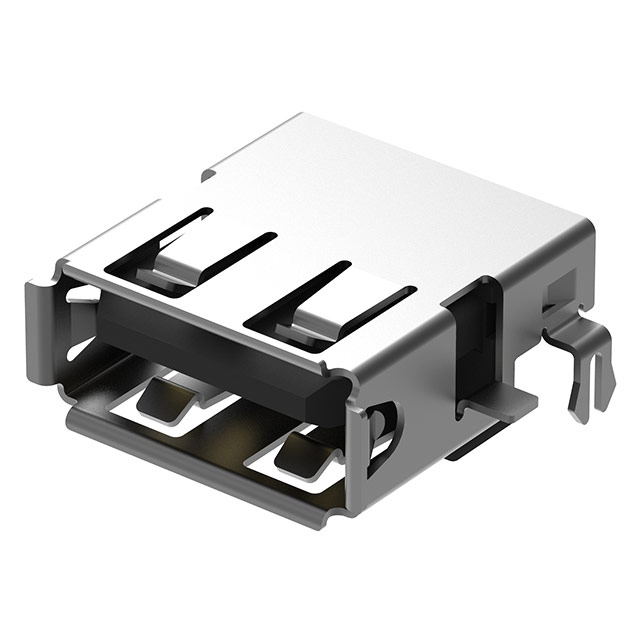

USB1015-GF-L-A
ActiveGCT
USB A SKT, MID-TH, R/A, GF, OFFS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
USB1015-GF-L-A
ActiveGCT
USB A SKT, MID-TH, R/A, GF, OFFS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | USB1015-GF-L-A |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Features | Board Lock, Solder Retention |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Through Hole, Right Angle, Board Edge, Cutout |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.00 | |
| 10 | $ 0.84 | |||
| 25 | $ 0.81 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.76 | |||
| Digi-Reel® | 1 | $ 1.00 | ||
| 10 | $ 0.84 | |||
| 25 | $ 0.81 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.76 | |||
| Tape & Reel (TR) | 400 | $ 0.69 | ||
| 800 | $ 0.60 | |||
| 1200 | $ 0.55 | |||
| 2000 | $ 0.52 | |||
| 2800 | $ 0.50 | |||
| 10000 | $ 0.46 | |||
| 20000 | $ 0.45 | |||
Description
General part information
USB1015 Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Board Edge, Cutout; Through Hole, Right Angle
