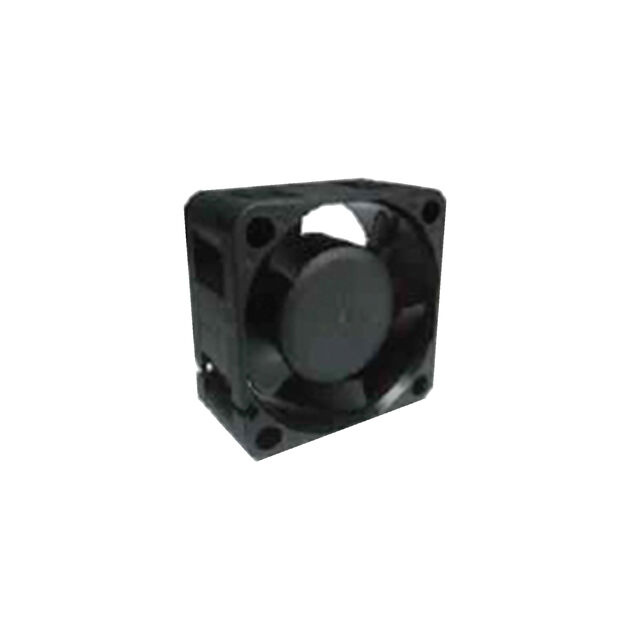

YW04020024BM-N-5

Active

YS TECH USA

FAN AXIAL 40X20MM 24VDC WIRE

Search across all available documentation for this part.

Active

YS TECH USA

FAN AXIAL 40X20MM 24VDC WIRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H 2 Wire Leads

Technical documentation and resources

Specification	YW04020024BM-N-5	YW04020024 Series

Air Flow	-	0.319 m³/min
Air Flow	-	11.4 CFM
Bearing Type	-	Ball
Current Rating (Amps)	-	85 mA
Fan Type	Tubeaxial	Tubeaxial
Lifetime @ Temp.	-	65000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	-	29.5 dB(A)
RPM	-	8500 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	-	0.4 in H2O
Static Pressure	-	99.6 Pa
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	26.4 VDC	26.4 VDC
Voltage Range [Min]	12 VDC	12 VDC
Width [y]	20 mm	20 mm

Part	Termination	Noise	Air Flow	Air Flow	Static Pressure	Static Pressure	Width [y]	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Bearing Type	RPM	Material - Blade	Fan Type	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage - Rated
YS TECH USA YW04020024BS-N-5	2 Wire Leads	29.5 dB(A)	0.319 m³/min	11.4 CFM	0.4 in H2O	99.6 Pa	20 mm	85 mA	26.4 VDC	12 VDC	65000 Hrs	Ball	8500 RPM	Polybutylene Terephthalate (PBT)	Tubeaxial	40 mm	Square	40 mm	24 VDC
YS TECH USA YW04020024BM-N-5	2 Wire Leads						20 mm		26.4 VDC	12 VDC				Polybutylene Terephthalate (PBT)	Tubeaxial	40 mm	Square	40 mm	24 VDC
