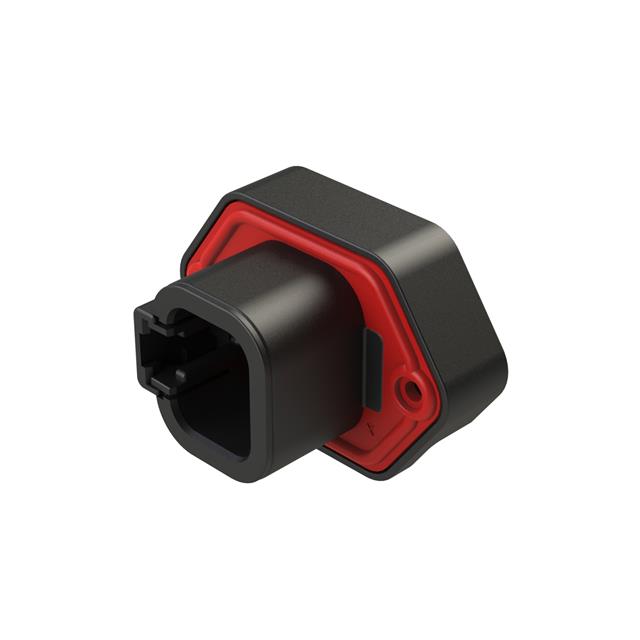

ATP15-4P-BM03BLK
ActiveAmphenol Sine Systems Corp
4 POSITION STRAIGHT PCB FLANGE M
Deep-Dive with AI
Search across all available documentation for this part.
ATP15-4P-BM03BLK
ActiveAmphenol Sine Systems Corp
4 POSITION STRAIGHT PCB FLANGE M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATP15-4P-BM03BLK |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post [x] | 0.181 in |
| Contact Length - Post [x] | 4.6 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 25 A |
| Fastening Type | Latch Holder |
| Features | Sealed, Mounting Flange, Board Lock |
| Ingress Protection | IP67 |
| Insulation Color | Black |
| Insulation Height | 1.339 " |
| Insulation Height | 34 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 6.71 mm |
| Pitch - Mating | 0.264 in |
| Row Spacing - Mating | 0.276 in |
| Row Spacing - Mating | 7 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
