EDAC Inc.

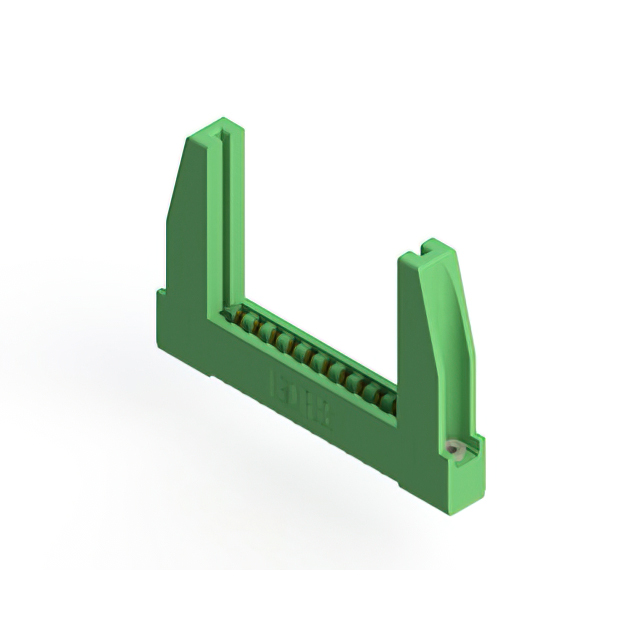

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 11 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

307-011-531-178

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 11 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-011-531-178

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	11
Number of Positions/Bay/Row [custom]	11
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-011 Series

...

Part	Number of Positions	Termination Rows	Termination	Card Type	Contact Type	Flange Feature	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Read Out	Gender	Material - Insulation	Number of Rows	Color	Number of Positions/Bay/Row [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-011-553-108	22 positions	1	Solder	Non Specified - Dual Edge	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Female	Polyester Thermoplastic	2	Green	11	Through Hole Right Angle	10 Áin	0.25 Ám
EDAC Inc. 307-011-501-168	22 positions	1	Solder Eyelet(s)	Non Specified - Dual Edge	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Female	Polyester Thermoplastic	2	Green	11	Through Hole	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 307-011-425-112	11	1	Solder	Non Specified - Single Edge	Semi Bellows	Flush Mount Side Opening Unthreaded	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	-40 °C	105 ░C	0.156 in	3.96 mm	Single	Female	Polyester Thermoplastic	1	Green	11	Through Hole				3.25 mm	0.128 "
EDAC Inc. 307-011-421-102	22 positions	1	Solder	Non Specified - Dual Edge	Semi Bellows	Flush Mount Top Opening Unthreaded	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Female	Polyester Thermoplastic	2	Green	11	Through Hole				3.25 mm	0.128 "
EDAC Inc. 307-011-531-158	11	1	Solder	Non Specified - Single Edge	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	0.156 in	3.96 mm	Single	Female	Polyester Thermoplastic	1	Green	11	Through Hole	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 307-011-421-168	22 positions	1	Solder	Non Specified - Dual Edge	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Female	Polyester Thermoplastic	2	Green	11	Through Hole			Card Guides
EDAC Inc. 307-011-501-158	22 positions	1	Solder Eyelet(s)	Non Specified - Dual Edge	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Female	Polyester Thermoplastic	2	Green	11	Through Hole	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 307-011-458-101	11	1	Solder	Non Specified - Single Edge	Semi Bellows		Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	-40 °C	105 ░C	0.156 in	3.96 mm	Single	Female	Polyester Thermoplastic	1	Green	11	Through Hole Right Angle
EDAC Inc. 307-011-557-102	22 positions	1	Wire Wrap	Non Specified - Dual Edge	Semi Bellows	Flush Mount Top Opening Unthreaded	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Female	Polyester Thermoplastic	2	Green	11	Through Hole Right Angle	10 Áin	0.25 Ám		3.25 mm	0.128 "
EDAC Inc. 307-011-531-178	11	1	Solder	Non Specified - Single Edge	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	0.156 in	3.96 mm	Single	Female	Polyester Thermoplastic	1	Green	11	Through Hole	10 Áin	0.25 Ám	Card Guides
