ZF12 FG BK 4U OA

Active

LITTELFUSE

SWITCH PUSH 4PDT 0.5A 125V

Search across all available documentation for this part.

Active

LITTELFUSE

SWITCH PUSH 4PDT 0.5A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

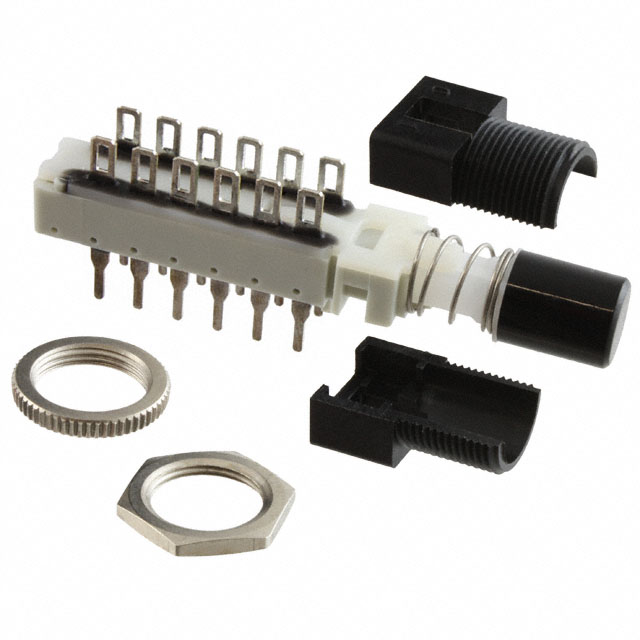

Pushbutton Switch 4PDT Standard Panel Mount, Right Angle, Rear

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ZF12 FG BK 4U OA	ZF12 Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	4PDT	4PDT
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	500 mA	500 mA
Electrical Life	100000 Cycles	100000 Cycles
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Right Angle, Rear	Panel Mount, Right Angle, Rear
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	12 mm	12 mm
Switch Function	On-Mom	On-Mom, On-On
Termination Style	PC Pin, Solder Lug	PC Pin, Solder Lug
Type	Standard	Standard
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

SWITCH PUSH 4PDT 0.5A 125V

Part	Mounting Type	Termination Style	Circuit	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Actuator Type	Type	Switch Function	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Voltage Rating - DC	Electrical Life	Current Rating (Amps)	Mechanical Life
LITTELFUSE ZF12 FG BK 4U OA	Panel Mount, Rear, Right Angle	PC Pin, Solder Lug	4PDT	12 mm	Black	Button, Round	Standard	On-Mom	No Marking	-40 °C	70 °C	125 V	30 V	100000 Cycles	500 mA	100000 Cycles
LITTELFUSE ZF12 FG BK 4U EE	Panel Mount, Rear, Right Angle	PC Pin, Solder Lug	4PDT	12 mm	Black	Button, Round	Standard	On-On	No Marking	-40 °C	70 °C	125 V	30 V	100000 Cycles	500 mA	100000 Cycles
LITTELFUSE ZF124UEE
LITTELFUSE ZF12 FG RD NE18 2A EE
LITTELFUSE ZF12 FG BK NE18 2U EE
