896-008-541-103

Active

EDAC Inc.

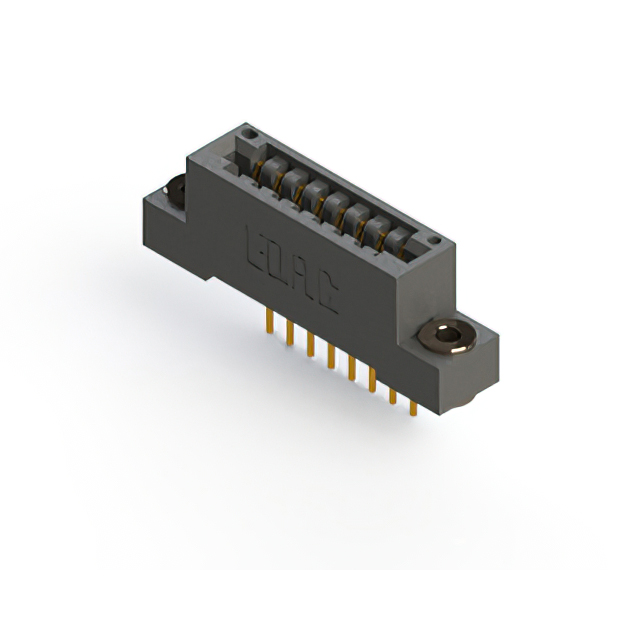

CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, 0.125 INCH PITCH, WIRE WRAP TERMINAL, HOLE .116, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-008-541-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, 0.125 INCH PITCH, WIRE WRAP TERMINAL, HOLE .116, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	896-008-541-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

896-008 Series

...

Part	Material - Insulation	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Gender	Flange Feature	Mounting Type	Card Type	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Material	Number of Rows	Termination Rows	Termination	Contact Finish	Read Out	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 896-008-558-108	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 °C	8	Female	4-40 Flush Mount Threaded Insert Top Opening	Through Hole Right Angle	Non Specified - Single Edge	8	8	8	Copper Alloy	1	1	Solder	Gold	Single	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm
EDAC Inc. 896-008-541-101	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 °C	8	Female		Through Hole	Non Specified - Single Edge	8	8	8	Copper Alloy	1	1	Wire Wrap	Gold	Single	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm
EDAC Inc. 896-008-526-104	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 °C	8	Female	Flush Mount Top Opening Unthreaded	Through Hole	Non Specified - Single Edge	8	8	8	Copper Alloy	1	1	Solder	Gold	Single	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	3.96 mm	0.156 in
EDAC Inc. 896-008-520-608	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 °C	8	Female	4-40 Threaded Insert Top Mount Opening	Through Hole	Non Specified - Single Edge	8	8	8	Copper Alloy	1	1	Solder	Gold	Single	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm
EDAC Inc. 896-008-559-108	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 °C	8	Female	4-40 Flush Mount Threaded Insert Top Opening	Through Hole Right Angle	Non Specified - Single Edge	8	8	8	Copper Alloy	1	1	Solder	Gold	Single	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm
EDAC Inc. 896-008-541-604	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 °C	8	Female	Top Mount Opening Unthreaded	Through Hole	Non Specified - Single Edge	8	8	8	Copper Alloy	1	1	Wire Wrap	Gold	Single	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	3.96 mm	0.156 in
EDAC Inc. 896-008-559-607	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 °C	8	Female	M3 Threaded Insert Top Mount Opening	Through Hole Right Angle	Non Specified - Single Edge	8	8	8	Copper Alloy	1	1	Solder	Gold	Single	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm
EDAC Inc. 896-008-558-102	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 °C	8	Female	Flush Mount Top Opening Unthreaded	Through Hole Right Angle	Non Specified - Single Edge	8	8	8	Copper Alloy	1	1	Solder	Gold	Single	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	3.25 mm	0.128 "
EDAC Inc. 896-008-521-101	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 °C	8	Female		Through Hole	Non Specified - Single Edge	8	8	8	Copper Alloy	1	1	Solder	Gold	Single	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm
EDAC Inc. 896-008-541-103	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 °C	8	Female	Floating Bobbin Flush Mount	Through Hole	Non Specified - Single Edge	8	8	8	Copper Alloy	1	1	Wire Wrap	Gold	Single	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 50.12

Description

General part information

896-008 Series

8 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
