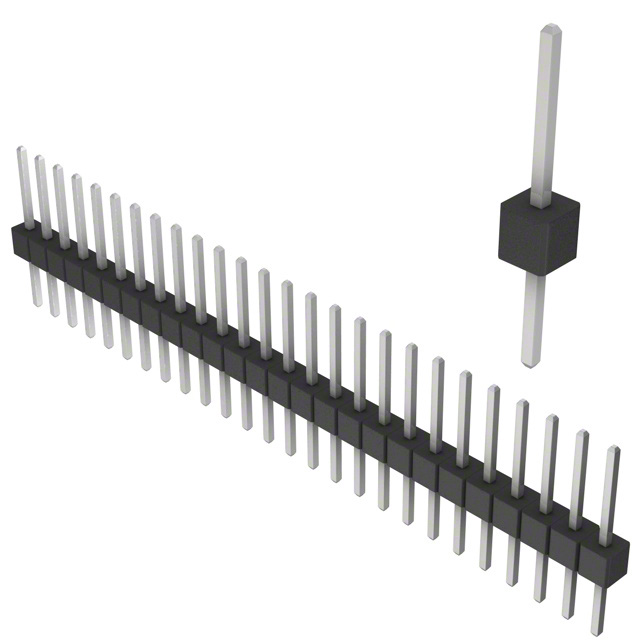

PEC26SFBN

Active

Sullins Connector Solutions

BOARD CONNECTOR, 26 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

PEC26SFBN

Active

Sullins Connector Solutions

BOARD CONNECTOR, 26 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC26SFBN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	16.21 mm
Overall Contact Length	0.638 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC26 Series

Part	Connector Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Shape	Mounting Type	Contact Type	Shrouding	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Insulation Height	Insulation Height	Number of Rows	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Current Rating (Amps)	Number of Positions	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PEC26SACN	Breakaway Header	Solder	2.54 µm	100 µin	Black	125 °C	-65 ░C	UL94 V-0	Square	Through Hole	Male Pin	Unshrouded	0.23 in	5.84 mm	Phosphor Bronze	0.1 in	2.54 mm	1	0.1 in	2.54 mm	Push-Pull	0.32 in	8.13 mm	Polybutylene Terephthalate (PBT)	3 A	26	All	16.51 mm	0.65 in	Tin	2.54 çm	100 çin	Board to Board Cable
Sullins Connector Solutions PEC26SFEN	Breakaway Header	Solder	2.54 µm	100 µin	Black	125 °C	-65 ░C	UL94 V-0	Square	Through Hole	Male Pin	Unshrouded	0.318 "		Phosphor Bronze	0.1 in	2.54 mm	1	0.1 in	2.54 mm	Push-Pull			Polybutylene Terephthalate (PBT)	3 A	26	All		23.83 mm	Tin	2.54 çm	100 çin	Board to Board Cable	0.938 in	13.21 mm	0.52 "	8.08 mm
Sullins Connector Solutions PEC26SFBN	Breakaway Header	Solder	2.54 µm	100 µin	Black	125 °C	-65 ░C	UL94 V-0	Square	Through Hole	Male Pin	Unshrouded	0.318 "		Phosphor Bronze	0.1 in	2.54 mm	1	0.1 in	2.54 mm	Push-Pull			Polybutylene Terephthalate (PBT)	3 A	26	All		16.21 mm	Tin	2.54 çm	100 çin	Board to Board Cable	0.638 in	5.58 mm	0.22 in	8.08 mm
Sullins Connector Solutions PEC26SBBN	Breakaway Header	Solder	2.54 µm	100 µin	Black	125 °C	-65 ░C	UL94 V-0	Square	Through Hole Right Angle	Male Pin	Unshrouded	0.23 in	5.84 mm	Phosphor Bronze	0.14 in	3.56 mm	1	0.1 in	2.54 mm	Push-Pull	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	3 A	26	All			Tin	2.54 çm	100 çin	Board to Board Cable
Sullins Connector Solutions PEC26DFDN	Breakaway Header	Solder	2.54 µm	100 µin	Black	125 °C	-65 ░C	UL94 V-0	Square	Through Hole	Male Pin	Unshrouded	0.318 "		Phosphor Bronze	0.1 in	2.54 mm	2	0.1 in	2.54 mm	Push-Pull	0.42 in	10.67 mm	Polybutylene Terephthalate (PBT)	3 A	52	All		21.29 mm	Tin	2.54 çm	100 çin	Board to Board Cable	0.838 in			8.08 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC26DBCN	Breakaway Header	Solder	2.54 µm	100 µin	Black	125 °C	-65 ░C	UL94 V-0	Square	Through Hole Right Angle	Male Pin	Unshrouded	0.23 in	5.84 mm	Phosphor Bronze	0.24 in	6.1 mm	2	0.1 in	2.54 mm	Push-Pull	0.3 "	7.62 mm	Polybutylene Terephthalate (PBT)	3 A	52	All			Tin	2.54 çm	100 çin	Board to Board Cable					2.54 mm	0.1 in
Sullins Connector Solutions PEC26SBEN	Breakaway Header	Solder	2.54 µm	100 µin	Black	125 °C	-65 ░C	UL94 V-0	Square	Through Hole Right Angle	Male Pin	Unshrouded	0.23 in	5.84 mm	Phosphor Bronze	0.14 in	3.56 mm	1	0.1 in	2.54 mm	Push-Pull			Polybutylene Terephthalate (PBT)	3 A	26	All			Tin	2.54 çm	100 çin	Board to Board Cable		12.7 mm	0.5 in
Sullins Connector Solutions PEC26DFAN	Breakaway Header	Solder	2.54 µm	100 µin	Black	125 °C	-65 ░C	UL94 V-0	Square	Through Hole	Male Pin	Unshrouded	0.318 "		Phosphor Bronze	0.1 in	2.54 mm	2	0.1 in	2.54 mm	Push-Pull	0.12 in	3.05 mm	Polybutylene Terephthalate (PBT)	3 A	52	All		13.67 mm	Tin	2.54 çm	100 çin	Board to Board Cable	0.538 "			8.08 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC26DBBN	Breakaway Header	Solder	2.54 µm	100 µin	Black	125 °C	-65 ░C	UL94 V-0	Square	Through Hole Right Angle	Male Pin	Unshrouded	0.23 in	5.84 mm	Phosphor Bronze	0.24 in	6.1 mm	2	0.1 in	2.54 mm	Push-Pull	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	3 A	52	All			Tin	2.54 çm	100 çin	Board to Board Cable					2.54 mm	0.1 in
Sullins Connector Solutions PEC26SFCN	Breakaway Header	Solder	2.54 µm	100 µin	Black	125 °C	-65 ░C	UL94 V-0	Square	Through Hole	Male Pin	Unshrouded	0.318 "		Phosphor Bronze	0.1 in	2.54 mm	1	0.1 in	2.54 mm	Push-Pull	0.32 in	8.13 mm	Polybutylene Terephthalate (PBT)	3 A	26	All		18.75 mm	Tin	2.54 çm	100 çin	Board to Board Cable	0.738 "			8.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.03
		10	$ 1.77
		100	$ 1.58
		500	$ 1.32
		1000	$ 1.13
		5000	$ 1.07

Description

General part information

PEC26 Series

Connector Header Through Hole 26 position 0.100" (2.54mm)
