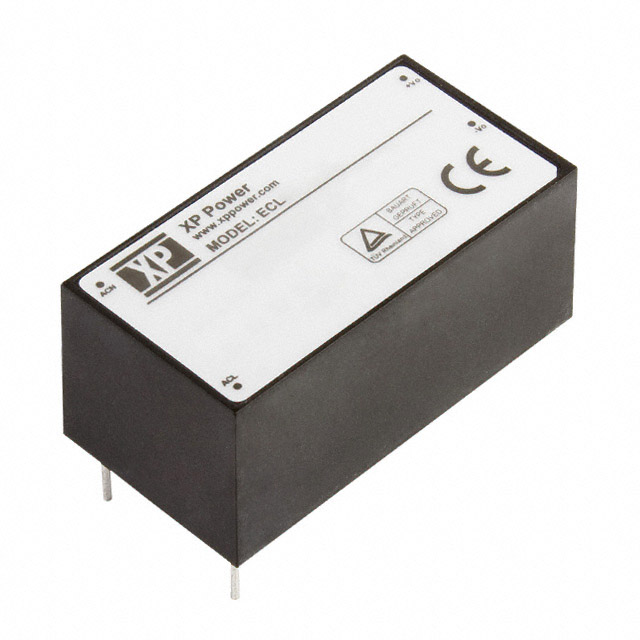

ECL10US03-E
ActiveXP POWER
AC/DC CONVERTER 3.3V 10W
Deep-Dive with AI
Search across all available documentation for this part.
ECL10US03-E
ActiveXP POWER
AC/DC CONVERTER 3.3V 10W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECL10US03-E |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CSA, UL, cUL, IEC, EN |
| Current - Output (Max) [Max] | 2.6 A |
| Efficiency | 72 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 2.06 in |
| Size / Dimension [x] | 52.3 mm |
| Size / Dimension [y] | 27.2 mm |
| Size / Dimension [y] | 1.07 in |
| Size / Dimension [z] | 0.91 in |
| Size / Dimension [z] | 23 mm |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Output 1 | 3.3 V |
| Weight | 0.132 lb |
| Weight | 59.87 g |
ECL10US03 Series
| Part | Power (Watts) | Features | Package / Case | Line Regulation | Approval Agency | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Type | Applications | Efficiency | Current - Output (Max) [Max] | Mounting Type | Load Regulation | Weight | Weight | Number of Outputs | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XP POWER | 10 W | Universal Input | 4-DIP Module | 0.5 % | CSA cUL EN IEC UL | 62368-1 | -20 °C | 70 °C | 3.3 V | Open Frame | ITE (Commercial) | 72 % | 2.6 A | Through Hole | 1 % | 0.057 lb | 25.85 g | 1 | 0.9 " | 22.9 mm | 50.8 mm | 25.4 mm | 25.4 mm | 2 in |
XP POWER | 10 W | Universal Input | 4-DIP Module | 0.5 % | CSA cUL EN IEC UL | 62368-1 | -20 °C | 70 °C | 3.3 V | Enclosed | ITE (Commercial) | 72 % | 2.6 A | Through Hole | 1 % | 0.132 lb | 59.87 g | 1 | 0.91 in | 23 mm | 52.3 mm | 1.07 in | 27.2 mm | 2.06 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 6 | $ 33.96 | |
Description
General part information
ECL10US03 Series
Enclosed AC DC Converters 1 Output 3.3V 2.6A 85 ~ 264 VAC Input
