SC1905A-00A00
ActiveAnalog Devices Inc./Maxim Integrated

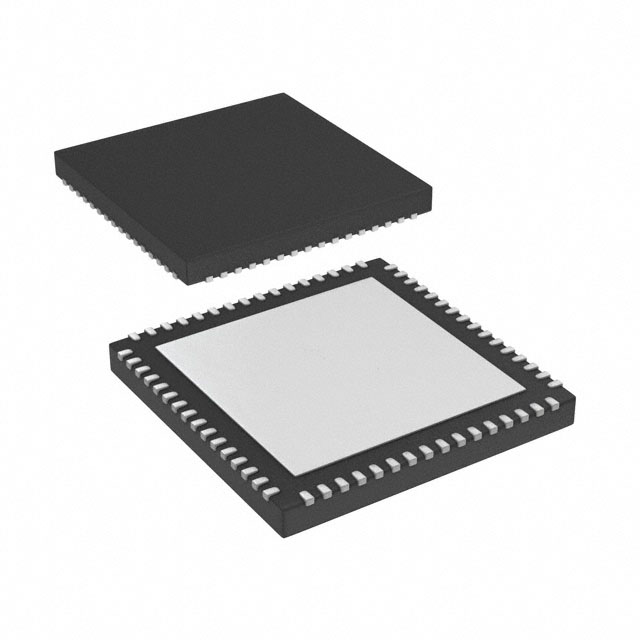

IC AMP CELL 698MHZ-3.8GHZ 64QFN
Deep-Dive with AI
Search across all available documentation for this part.
SC1905A-00A00
ActiveAnalog Devices Inc./Maxim Integrated
IC AMP CELL 698MHZ-3.8GHZ 64QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SC1905A-00A00 | SC1905 Series |
|---|---|---|
| Current - Supply | 942 mA, 95 mA | 95 - 942 mA |
| For Use With/Related Products | - | SC1905 |
| Frequency [Max] | 3.8 GHz | 2.2 - 3.8 GHz |
| Frequency [Min] | 698 MHz | 1.8 - 698 MHz |
| Function | - | Amplifier |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad |
| RF Type | TD-LTE, W-CDMA, Cellular, LTE | TD-LTE, W-CDMA, Cellular, LTE, General Purpose |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 64-QFN (9x9) | 64-QFN (9x9) |
| Type | - | Power Amplifier, RF Predistortion |
| Voltage - Supply [Max] | 1.95 V, 3.5 V | 1.95 - 3.5 V |
| Voltage - Supply [Min] | 3.1 V, 1.75 V | 1.75 - 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 171.16 | |
| 10 | $ 140.44 | |||
| 25 | $ 131.62 | |||
| 80 | $ 122.54 | |||
SC1905 Series
IC AMP CELL 698MHZ-3.8GHZ 64QFN
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | RF Type | Package / Case | Current - Supply | Frequency [Min] | Frequency [Max] | Supplier Device Package | Mounting Type | For Use With/Related Products | Type | Supplied Contents | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated SC1905A-00A00 | 1.95 V, 3.5 V | 1.75 V, 3.1 V | Cellular, LTE, TD-LTE, W-CDMA | 64-VFQFN Exposed Pad | 95 mA, 942 mA | 698 MHz | 3.8 GHz | 64-QFN (9x9) | Surface Mount | ||||
Analog Devices Inc./Maxim Integrated SC1905-EVK1900 | 1.8 GHz | 2.2 GHz | SC1905 | Power Amplifier | Board(s) | ||||||||
Analog Devices Inc./Maxim Integrated SC1905A-00A00E | General Purpose | 64-VFQFN Exposed Pad | 698 MHz | 3.8 GHz | 64-QFN (9x9) | Surface Mount | Amplifier | ||||||
Analog Devices Inc./Maxim Integrated SC1905-EVK3400 | 3.3 GHz | 3.8 GHz | SC1905 | RF Predistortion | Board(s) | ||||||||
Analog Devices Inc./Maxim Integrated SC1905-EVK2400 | 2.3 GHz | 2.7 GHz | SC1905 | RF Predistortion | Board(s) |
Description
General part information
SC1905 Series
RF Amplifier IC Cellular, LTE, TD-LTE, W-CDMA 698MHz ~ 3.8GHz 64-QFN (9x9)
