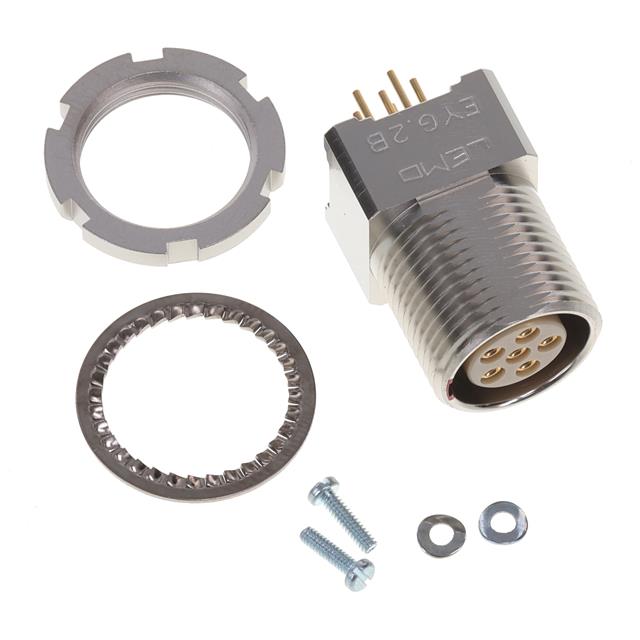

EYG.2B.306.NLN

Active

LEMO

CONN RCPT FMALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EYG.2B.306.NLN	EYG.2B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	12 A	8 - 12 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	6	6 - 10
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass	Brass
Shell Size - Insert	306	306 - 310
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT FMALE 6POS GOLD SOLDER

Part	Contact Material	Insert Material	Contact Finish - Mating	Shell Size - Insert	Mounting Type	Shell Finish	Shielding	Primary Material	Orientation	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shell Material	Color	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Connector Type	Ingress Protection	Mounting Feature	Termination
LEMO EYG.2B.306.NLN	Bronze	Polyetheretherketone (PEEK)	Gold	306	Panel Mount, Through Hole	Nickel	Shielded	Metal	G	6	-55 °C	250 °C	Push-Pull	Brass	Silver	12 A	59 Áin	1.5 Ám	UL94 V-0	Receptacle, Female Sockets	IP50	Bulkhead - Front Side Nut	Solder
LEMO EYG.2B.310.NLN	Bronze	Polyetheretherketone (PEEK)	Gold	310	Panel Mount, Through Hole	Nickel	Shielded	Metal	G	10	-55 °C	250 °C	Push-Pull	Brass	Silver	8 A	59 Áin	1.5 Ám	UL94 V-0	Receptacle, Female Sockets	IP50	Bulkhead - Front Side Nut	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
