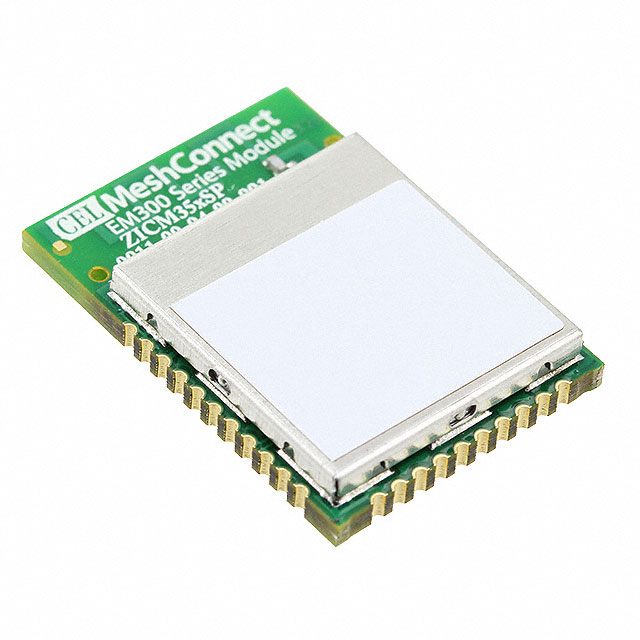

ZICM3588SP2-1C-R

CEL

RF TXRX MOD 802.15.4 CAST SMD

Search across all available documentation for this part.

CEL

RF TXRX MOD 802.15.4 CAST SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	600	$ 20.47

General part information

802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, Castellation Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ZICM3588SP2-1C-R	ZICM3588 Series

Antenna Type	Antenna Not Included, Castellation	Antenna Not Included, Castellation, Integrated, Trace
Current - Receiving	34 mA	30 - 34 mA
Current - Transmitting [Max]	150 mA	44 - 150 mA
Current - Transmitting [Min]	58 mA	31 - 58 mA
Data Rate	250 KBd	250 KBd
Frequency	2.4 GHz	2.4 GHz
Memory Size [custom]	64 kB	64 kB
Memory Size [custom]	512 kB	512 kB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	33-SMD Module	33-SMD Module
Power - Output	20 dBm	8 - 20 dBm
Protocol	Zigbee®	Zigbee®
RF Family/Standard	802.15.4	802.15.4
Sensitivity	-103 dBm	-103 - -100 dBm
Serial Interfaces	UART, JTAG, SPI	UART, JTAG, SPI
Utilized IC / Part	EM3588	EM3588
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.1 V	2.1 V

RF TXRX MOD 802.15.4 CAST SMD

Part	Protocol	Sensitivity	Serial Interfaces	Mounting Type	Current - Receiving	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Antenna Type	Package / Case	RF Family/Standard	Frequency	Memory Size [custom]	Memory Size [custom]	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting [Min]	Current - Transmitting [Max]
CEL ZICM3588SP2-1C-R	Zigbee®	-103 dBm	JTAG, SPI, UART	Surface Mount	34 mA	EM3588	85 °C	-40 °C	20 dBm	Antenna Not Included, Castellation	33-SMD Module	802.15.4	2.4 GHz	64 kB	512 kB	250 KBd	2.1 V	3.6 V	58 mA	150 mA
CEL ZICM3588SP0-1C-R	Zigbee®	-100 dBm	JTAG, SPI, UART	Surface Mount	30 mA	EM3588	85 °C	-40 °C	8 dBm	Antenna Not Included, Castellation	33-SMD Module	802.15.4	2.4 GHz	64 kB	512 kB	250 KBd	2.1 V	3.6 V	31 mA	44 mA
