ERA.0S.403.CTL
ActiveLEMO

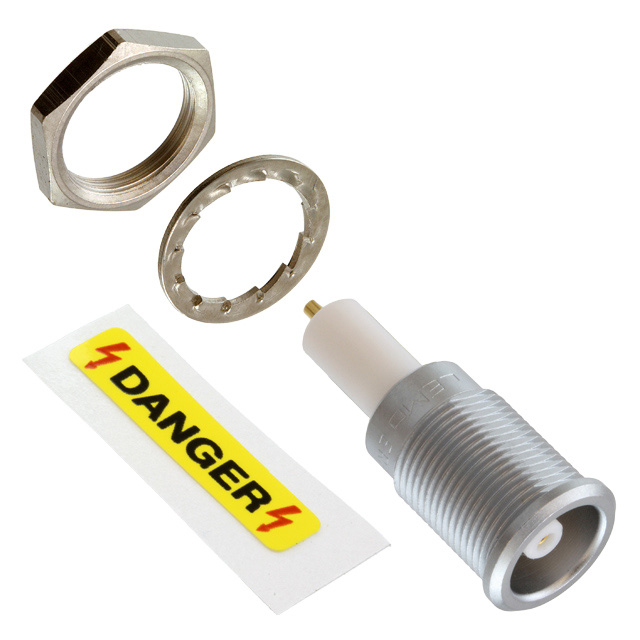

CONN RCPT FMALE 1P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERA.0S.403.CTL
ActiveLEMO
CONN RCPT FMALE 1P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ERA.0S.403.CTL | ERA.0S Series |
|---|---|---|
| Body Finish | - | Chrome |
| Body Material | - | Brass |
| Cable Group | - | 178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174 |
| Center Contact Material | - | Beryllium Copper |
| Center Contact Plating | - | Gold |
| Color | Silver | Silver |
| Connector Style | - | Triaxial, Coaxial |
| Connector Type | Receptacle, Female Sockets | Female Sockets, Male Pins, Receptacle, Female Socket, Receptacle, Female Sockets, Male Pin |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze | Bronze, Brass |
| Contact Termination | - | Solder Cup |
| Current Rating (Amps) | 4 A | 4 - 12 A |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | - | Silver |
| Impedance | - | 50 Ohms |
| Includes | - | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polytetrafluoroethylene (PTFE) | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | - | UL94 V-0 |
| Mating Cycles | - | 1000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Ports | - | 1 |
| Number of Positions | 1 | 1 - 4 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 403 | 116 - 405 |
| Shield Termination | - | Solder |
| Shielding | Shielded | Shielded |
| Termination | - | Solder |
ERA.0S Series
Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING
| Part | Termination | Current Rating (Amps) | Shell Finish | Material Flammability Rating | Primary Material | Insert Material | Shell Material | Number of Positions | Orientation | Mounting Feature | Fastening Type | Mounting Type | Shell Size - Insert | Connector Type | Shielding | Contact Finish - Mating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Ingress Protection | Center Contact Plating | Connector Style | Dielectric Material | Impedance | Number of Ports | Housing Color | Center Contact Material | Shield Termination | Cable Group | Contact Termination | Body Finish | Mating Cycles | Includes | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ERA.0S.304.CLN | Solder | 7 A | Chrome | UL94 V-0 | Metal | Polyetheretherketone (PEEK) | Brass | 4 | Keyed | Bulkhead - Rear Side Nut | Push-Pull | Panel Mount, Through Hole | 304 | Female Sockets, Male Pins, Receptacle | Shielded | Gold | Silver | -55 °C | 250 °C | Brass, Bronze | IP50 | ||||||||||||||
LEMO ERA.0S.403.CTA | 4 A | Chrome | Metal | Polytetrafluoroethylene (PTFE) | Brass | 1 | Keyed | Bulkhead - Rear Side Nut | Push-Pull | 403 | Male Pins, Receptacle | Shielded | Gold | Silver | -55 °C | 250 °C | Brass | IP50 | |||||||||||||||||
LEMO ERA.0S.650.CTL | Bulkhead - Rear Side Nut | Push-Pull | Female Socket, Receptacle | -55 °C | 250 °C | IP50 | Gold | Triaxial | Polytetrafluoroethylene (PTFE) | 50 Ohms | 1 | Silver | Beryllium Copper | Solder | 178, RG-174 | Solder Cup | Chrome | 1000 | 1 Connector, 1 Lockwasher, 1 Nut | Brass | |||||||||||||||
LEMO ERA.0S.403.CLL | 4 A | Chrome | UL94 V-0 | Metal | Polyetheretherketone (PEEK) | Brass | 1 | Keyed | Bulkhead - Rear Side Nut | Push-Pull | 403 | Receptacle, Female Sockets | Shielded | Gold | Silver | -55 °C | 250 °C | Bronze | IP50 | ||||||||||||||||
LEMO ERA.0S.650.CTN | Bulkhead - Rear Side Nut | Push-Pull | Female Socket, Receptacle | -55 °C | 250 °C | IP50 | Gold | Triaxial | Polytetrafluoroethylene (PTFE) | 50 Ohms | 1 | Silver | Beryllium Copper | Solder | 178, RG-174 | Solder Cup | Chrome | 1000 | 1 Connector, 1 Lockwasher, 1 Nut | Brass | |||||||||||||||
LEMO ERA.0S.304.CLL | 7 A | Chrome | UL94 V-0 | Metal | Polyetheretherketone (PEEK) | Brass | 4 | Keyed | Bulkhead - Rear Side Nut | Push-Pull | 304 | Female Sockets, Male Pins, Receptacle | Shielded | Gold | Silver | -55 °C | 250 °C | Brass, Bronze | IP50 | ||||||||||||||||
LEMO ERA.0S.403.CTL | 4 A | Chrome | Metal | Polytetrafluoroethylene (PTFE) | Brass | 1 | Keyed | Bulkhead - Rear Side Nut | Push-Pull | 403 | Receptacle, Female Sockets | Shielded | Gold | Silver | -55 °C | 250 °C | Bronze | IP50 | |||||||||||||||||
LEMO ERA.0S.650.CTA | Bulkhead - Rear Side Nut | Push-Pull | Male Pin, Receptacle | -55 °C | 250 °C | IP50 | Gold | Triaxial | Polytetrafluoroethylene (PTFE) | 50 Ohms | 1 | Silver | Beryllium Copper | Solder | 178, RG-174 | Solder Cup | Chrome | 1000 | 1 Connector, 1 Lockwasher, 1 Nut | Brass | |||||||||||||||
LEMO ERA.0S.303.CLL | 7 A | Chrome | UL94 V-0 | Metal | Polyetheretherketone (PEEK) | Brass | Keyed | Bulkhead - Rear Side Nut | Push-Pull | 303 | Female Sockets, Male Pins, Receptacle | Shielded | Gold | Silver | -55 °C | 250 °C | Brass, Bronze | IP50 | |||||||||||||||||
LEMO ERA.0S.650.CTAZ | Bulkhead - Rear Side Nut | Push-Pull | Male Pin, Receptacle | -55 °C | 250 °C | IP50 | Gold | Triaxial | Polytetrafluoroethylene (PTFE) | 50 Ohms | 1 | Silver | Beryllium Copper | Solder | 178, RG-174 | Solder Cup | Chrome | 1000 | 1 Connector, 1 Lockwasher, 1 Nut | Brass |
