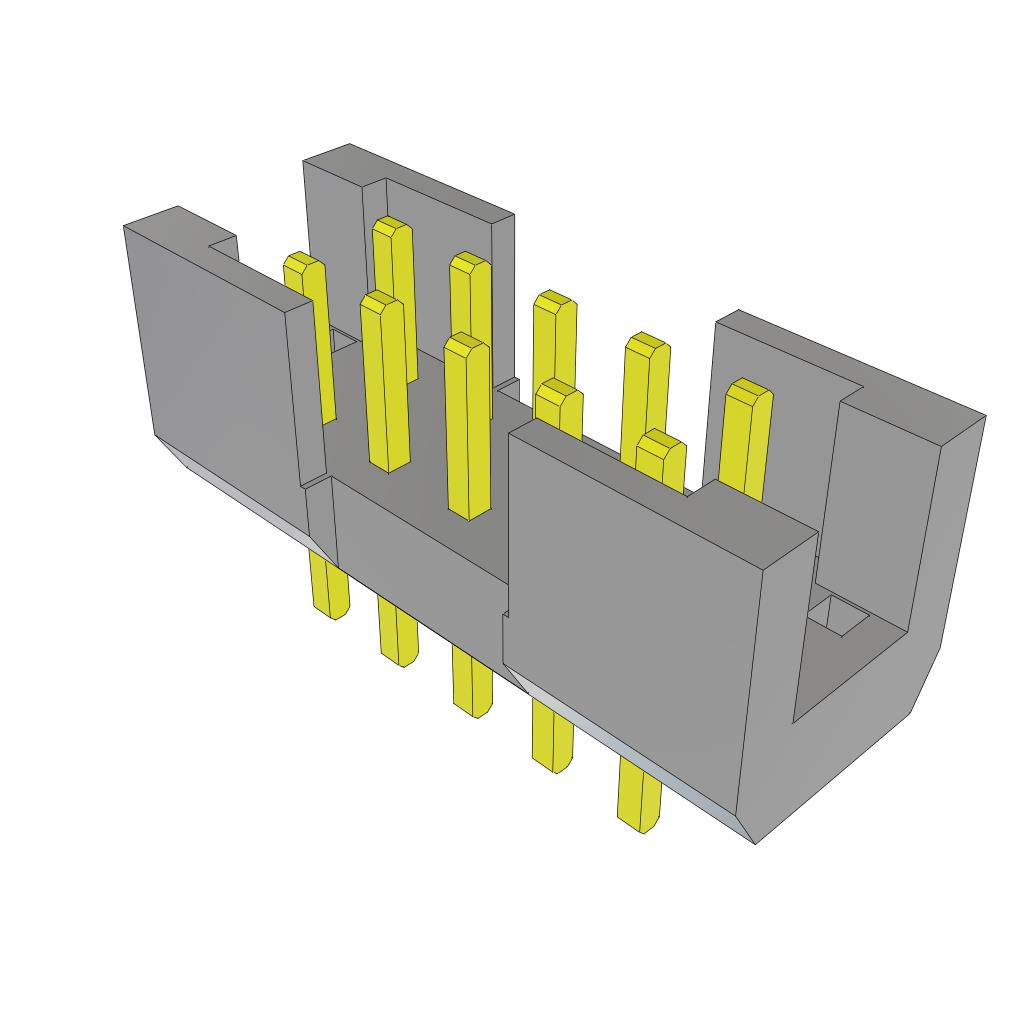

TSH-105-01-L-D

Active

Samtec Inc.

2.00 MM SHROUDED TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TSH Datasheet

TSH-105-01-L-D

Active

Samtec Inc.

2.00 MM SHROUDED TERMINAL STRIP

Deep-Dive with AI

DocumentsDatasheet TSH Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSH-105-01-L-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Length - Post [custom]	2.46 mm
Contact Length - Post [custom]	0.097 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	End Shrouds
Insulation Color	Black
Insulation Height	5.33 mm
Insulation Height	0.21 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.302 in
Overall Contact Length	7.67 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 3 Wall
Termination	Solder

TSH-105 Series

Part	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Finish - Mating	Features	Termination	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions	Fastening Type	Connector Type	Material Flammability Rating	Insulation Color	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Material	Insulation Material	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [custom]	Insulation Height [custom]	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]
Samtec Inc. TSH-105-01-F-DV	All	0.079 in	2 mm	Tin	Gold	End Shrouds	Solder	Male Pin	3 µin	0.076 µm	5.33 mm	0.21 in	10	Push-Pull	Header	UL94 V-0	Black	Square	-55 °C	125 °C	3.2 mm	0.126 "	Shrouded - 3 Wall	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.079 in	2 mm	Surface Mount
Samtec Inc. TSH-105-01-G-DV-A	All	0.079 in	2 mm	Gold	Gold	Board Guide End Shrouds	Solder	Male Pin	20 µin	0.51 µm	5.33 mm	0.21 in	10	Push-Pull	Header	UL94 V-0	Black	Square	-55 °C	125 °C	3.2 mm	0.126 "	Shrouded - 3 Wall	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.079 in	2 mm	Surface Mount	3 µin	0.076 µm
Samtec Inc. TSH-105-01-L-DH	All	0.079 in	2 mm	Tin	Gold	End Shrouds	Solder	Male Pin	10 çin	0.25 çm			10	Push-Pull	Header	UL94 V-0	Black	Square	-55 °C	125 °C	3.2 mm	0.126 "	Shrouded - 3 Wall	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.079 in	2 mm	Surface Mount Right Angle			0.157 in	4 mm
Samtec Inc. TSH-105-01-F-DH	All	0.079 in	2 mm	Tin	Gold	End Shrouds	Solder	Male Pin	3 µin	0.076 µm			10	Push-Pull	Header	UL94 V-0	Black	Square	-55 °C	125 °C	3.2 mm	0.126 "	Shrouded - 3 Wall	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.079 in	2 mm	Surface Mount Right Angle			0.157 in	4 mm
Samtec Inc. TSH-105-01-SM-DV	All	0.079 in	2 mm	Tin	Gold	End Shrouds	Solder	Male Pin	30 Áin	0.76 Ám	5.33 mm	0.21 in	10	Push-Pull	Header	UL94 V-0	Black	Square	-55 °C	125 °C	3.2 mm	0.126 "	Shrouded - 3 Wall	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.079 in	2 mm	Surface Mount
Samtec Inc. TSH-105-01-L-D	All	0.079 in	2 mm	Tin	Gold	End Shrouds	Solder	Male Pin	10 çin	0.25 çm	5.33 mm	0.21 in	10	Push-Pull	Header	UL94 V-0	Black	Square	-55 °C	125 °C	3.2 mm	0.126 "	Shrouded - 3 Wall	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.079 in	2 mm	Through Hole					0.302 in	7.67 mm	2.46 mm	0.097 in
Samtec Inc. TSH-105-01-F-DH-SL-TR	All	0.079 in	2 mm	Tin	Gold	End Shrouds Solder Retention	Solder	Male Pin	3 µin	0.076 µm			10	Push-Pull	Header	UL94 V-0	Black	Square	-55 °C	125 °C	3.2 mm	0.126 "	Shrouded - 3 Wall	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.079 in	2 mm	Surface Mount Right Angle			0.157 in	4 mm
Samtec Inc. TSH-105-01-T-DH-SL	All	0.079 in	2 mm	Tin		End Shrouds Solder Retention	Solder	Male Pin					10	Push-Pull	Header	UL94 V-0	Black	Square	-55 °C	105 ░C	3.2 mm	0.126 "	Shrouded - 3 Wall	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.079 in	2 mm	Surface Mount Right Angle			0.157 in	4 mm
Samtec Inc. TSH-105-01-L-DV-A-TR	All	0.079 in	2 mm	Tin	Gold	Board Guide End Shrouds	Solder	Male Pin	10 çin	0.25 çm	5.33 mm	0.21 in	10	Push-Pull	Header	UL94 V-0	Black	Square	-55 °C	125 °C	3.2 mm	0.126 "	Shrouded - 3 Wall	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.079 in	2 mm	Surface Mount
Samtec Inc. TSH-105-01-T-D	All	0.079 in	2 mm	Tin		End Shrouds	Solder	Male Pin			5.33 mm	0.21 in	10	Push-Pull	Header	UL94 V-0	Black	Square	-55 °C	105 ░C	3.2 mm	0.126 "	Shrouded - 3 Wall	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.079 in	2 mm	Through Hole					0.302 in	7.67 mm	2.46 mm	0.097 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.15
		50	$ 1.76
		100	$ 1.49
		500	$ 1.33
		1000	$ 1.24

Description

General part information

TSH-105 Series

Connector Header Through Hole 10 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

TSH Datasheet

Datasheet
