JC1AF-TM-DC5V

Obsolete

Panasonic Electric Works

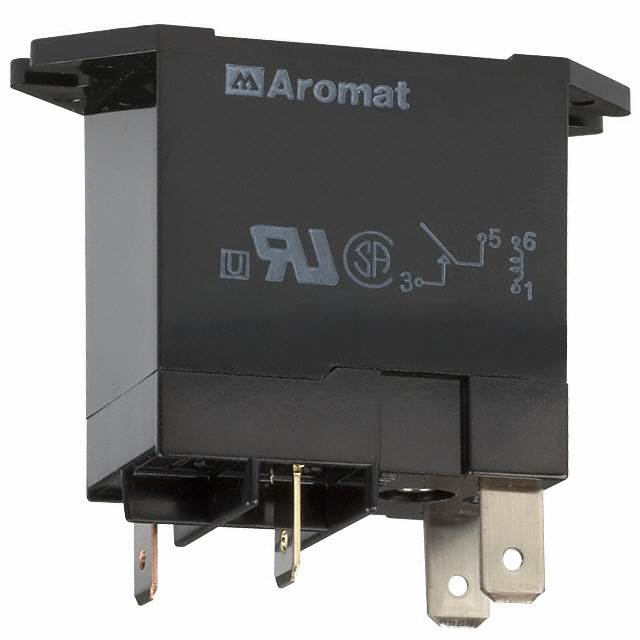

RELAY GEN PURPOSE SPST 15A 5V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 15A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Relay Type	Must Release Voltage	Load - Max Switching	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Termination Style	Coil Resistance	Coil Voltage	Contact Form	Contact Material	Contact Rating (Current)	Mounting Type	Approval Agency	Operate Time	Release Time	Switching Voltage	Coil Current
Panasonic Electric Works JC1AF-TM-DC36V	General Purpose	3.6 VDC	3750 VA	Non Latching	60 °C	-50 °C	28.8 VDC	Quick Connect - 0.187" (4.7mm)	1440 Ohms	36 VDC	SPST-NO (1 Form A)	Silver Alloy	15 A	Chassis Mount	CSA TUV UR VDE	15 ms	2 ms	250 VAC
Panasonic Electric Works JC1AF-TM-DC5V	General Purpose	0.5 VDC	3750 VA	Non Latching	60 °C	-50 °C	4 VDC	Quick Connect - 0.187" (4.7mm)	27.8 Ohms	5 VDC	SPST-NO (1 Form A)	Silver Alloy	15 A	Chassis Mount	CSA TUV UR VDE	15 ms	2 ms	250 VAC	180 mA
Panasonic Electric Works JC1AF-TM-DC12V	General Purpose	1.2 VDC	3750 VA	Non Latching	60 °C	-50 °C	9.6 VDC	Quick Connect - 0.187" (4.7mm)	160 Ohms	12 VDC	SPST-NO (1 Form A)	Silver Alloy	15 A	Chassis Mount	CSA TUV UR VDE	15 ms	2 ms	250 VAC	75 mA
Panasonic Electric Works JC1AF-TM-DC24V-F	General Purpose	2.4 VDC	3750 VA	Non Latching	60 °C	-50 °C	19.2 VDC	Quick Connect - 0.187" (4.7mm)	640 Ohms	24 VDC	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	15 A	Chassis Mount	CSA TUV UR VDE	30 ms	10 ms	250 VAC	37.5 mA
