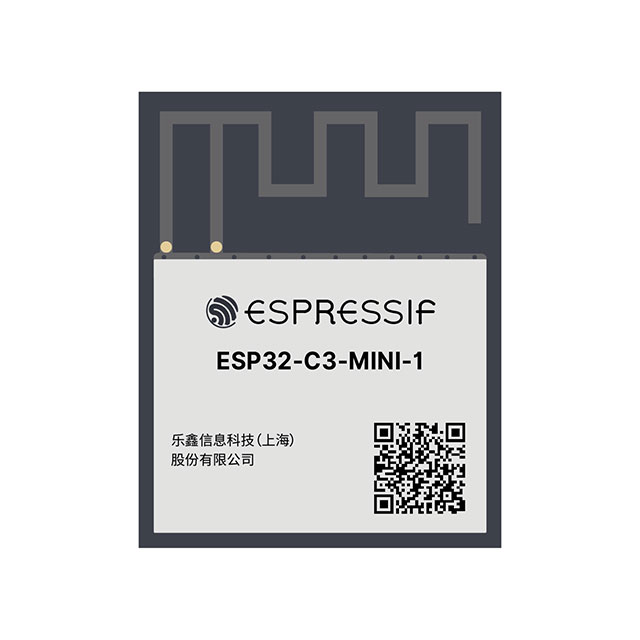

ESP32-C3-MINI-1-N4

Active

Espressif Systems

RF TXRX MOD BT WIFI PCB TH SMD

Search across all available documentation for this part.

Active

Espressif Systems

RF TXRX MOD BT WIFI PCB TH SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.80
	Digi-Reel®	1	$ 1.80
	Tape & Reel (TR)	650	$ 1.80

General part information

Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.412GHz ~ 2.484GHz PCB Trace Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ESP32-C3-MINI-1-N4	ESP32-C3 Series

Antenna Type	PCB Trace	PCB Trace
Current - Receiving	-	84 mA
Current - Receiving [Max]	84 mA	84 mA
Current - Receiving [Min]	82 mA	82 mA
Current - Transmitting	-	350 mA
Current - Transmitting [Max]	350 mA	350 mA
Current - Transmitting [Min]	290 mA	290 mA
Data Rate	150 Mbps	2 - 150 Mbps
Frequency	-	2.4 GHz
Frequency [Max]	2.484 GHz	2.484 GHz
Frequency [Min]	2.412 GHz	2.412 GHz
Memory Size	400 kB, 4 MB, 384 kB	4 - 408 kB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	53-SMD Module	Module, 53-SMD Module
Power - Output	20.5 dBm	20.5 - 21 dBm
Protocol	Bluetooth v5.0, 802.11b/g/n	Bluetooth v5.0, 802.11b/g/n
RF Family/Standard	WiFi, Bluetooth	WiFi, Bluetooth
Sensitivity	-104 dBm	-104 - -98 dBm
Serial Interfaces	USB, JTAG, I2S, GPIO, SPI, PWM, I2C, UART, ADC	SPI, I2C, GPIO, I2S, UART, PWM, ADC, JTAG, USB
Utilized IC / Part	ESP32-C3FN4	ESP32-C3FH4, ESP32-C3FN4
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

RF TXRX MOD BT WIFI PCB TH SMD

Part	Utilized IC / Part	RF Family/Standard	Sensitivity	Current - Receiving	Power - Output	Memory Size	Current - Transmitting	Antenna Type	Package / Case	Mounting Type	Frequency [Max]	Frequency [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Serial Interfaces	Protocol	Current - Transmitting [Min]	Current - Transmitting [Max]	Frequency	Current - Receiving [Max]	Current - Receiving [Min]
Espressif Systems ESP32-C3-MINI-1-H4-ES	ESP32-C3FH4	Bluetooth, WiFi	-98 dBm	84 mA	20.5 dBm	4 MB, 384 kB, 400 kB	350 mA	PCB Trace	Module	Surface Mount	2.484 GHz	2.412 GHz	-40 °C	105 ░C	3.6 V	3 V	2 Mbps	GPIO, I2C, I2S, SPI, UART	802.11b/g/n, Bluetooth v5.0
Espressif Systems ESP32-C3-MINI-1-N4-A	ESP32-C3FH4	Bluetooth, WiFi	-104 dBm		21 dBm			PCB Trace	53-SMD Module	Surface Mount			-40 °C	105 ░C	3.6 V	3 V	150 Mbps	ADC, GPIO, I2C, I2S, JTAG, PWM, SPI, UART	802.11b/g/n, Bluetooth v5.0	290 mA	350 mA	2.4 GHz	84 mA	82 mA
Espressif Systems ESP32-C3-MINI-1U-N4	ESP32-C3FN4	Bluetooth, WiFi	-104 dBm		20.5 dBm	4 MB, 384 kB, 408 kB			53-SMD Module	Surface Mount	2.484 GHz	2.412 GHz	-40 °C	85 °C	3.6 V	3 V	150 Mbps	ADC, GPIO, I2C, I2S, JTAG, PWM, SPI, UART, USB	802.11b/g/n, Bluetooth v5.0	290 mA	350 mA		84 mA	82 mA
Espressif Systems ESP32-C3-MINI-1-N4	ESP32-C3FN4	Bluetooth, WiFi	-104 dBm		20.5 dBm	4 MB, 384 kB, 400 kB		PCB Trace	53-SMD Module	Surface Mount	2.484 GHz	2.412 GHz	-40 °C	85 °C	3.6 V	3 V	150 Mbps	ADC, GPIO, I2C, I2S, JTAG, PWM, SPI, UART, USB	802.11b/g/n, Bluetooth v5.0	290 mA	350 mA		84 mA	82 mA
